MRCOOL® 36k 5th Gen DIY® 5-Zone Mini Split Bundle with (12K + 24K) Air Handler with (25ft + 25ft) Pre-Charged R-454B Line Sets, (230V)- DIYM236HPW06D07

Product Description

Model: DIYM236HPW06D07



DIYM236HPW06D07 — The Ultimate Dual-Zone DIY System for Real Homes That Need Real Comfort

The MRCOOL DIYM236HPW06D07 is one of the strongest-performing dual-zone 5th Generation DIY systems available today. Built on MRCOOL’s newest R-454B Quick-Connect® platform, this bundle delivers exceptional comfort, unmatched installation simplicity, and true long-term energy efficiency — all without paying an HVAC contractor.



This specific configuration includes:

• A 36,000 BTU 5-Zone outdoor condenser
• A 12,000 BTU wall mount indoor air handler
• A 24,000 BTU wall mount indoor air handler
• Two 25 ft pre-charged line sets, designed for perfect matching and maximum efficiency

It’s the ideal setup for homeowners who need powerful comfort in two medium-to-large spaces while keeping installation clean, simple, and exactly to spec.



💥 Why This Bundle Beats Every Competing Setup

Most multi-zone systems force you to accept line set lengths you don’t truly need.

This bundle solves that by giving:

✔ Two full-length 25 ft line sets

Perfect when both rooms are located farther from the condenser, or when the line set route requires extra travel.



✔ True DIY installation

No vacuum pump.

No gauges.

No EPA license.

Everything comes factory-sealed, pressurized, and ready to connect.



✔ Maximum flexibility

The 12K and 24K indoor units:

• Operate independently
• Have separate thermostats
• Maintain different temperatures
• Run separate schedules
• Deliver full output even in extreme weather

The 36k multi-zone outdoor condenser still has 3 open ports, allowing future expansion at any time.



❄️ Performance That’s Built to Dominate Your Climate

The DIY-MULTI5-36HP230D-O condenser is one of the highest-performing multi-zone DIY units on the market:

• 23 SEER2 Efficiency

Among the highest in the DIY category.

• R-454B Refrigerant

Cooler, safer, and 65% lower GWP compared to R-410A systems sold by competitors.

• Extreme Low-Temperature Heating

Advanced inverter technology maintains reliable heating performance even when traditional heat pumps shut down.



SmartHVAC App Control

Control both rooms with:

– Smartphone

– Alexa

– Google Assistant

– Automated schedules

– Energy monitoring

No other DIY system offers this level of smart home integration out of the box.



Detailed Component Breakdown

✔ 36K 5th Gen Multi-Zone Condenser (DIY-MULTI5-36HP230D-O)

• Supports 5 zones total
• Cooling: 34,000 BTU
• Heating: 36,000 BTU
• Ultra-quiet DC inverter
• AHRI certified
• 5-year parts + 7-year compressor warranty
• Eligible for MRCOOL care kit program (with registration)

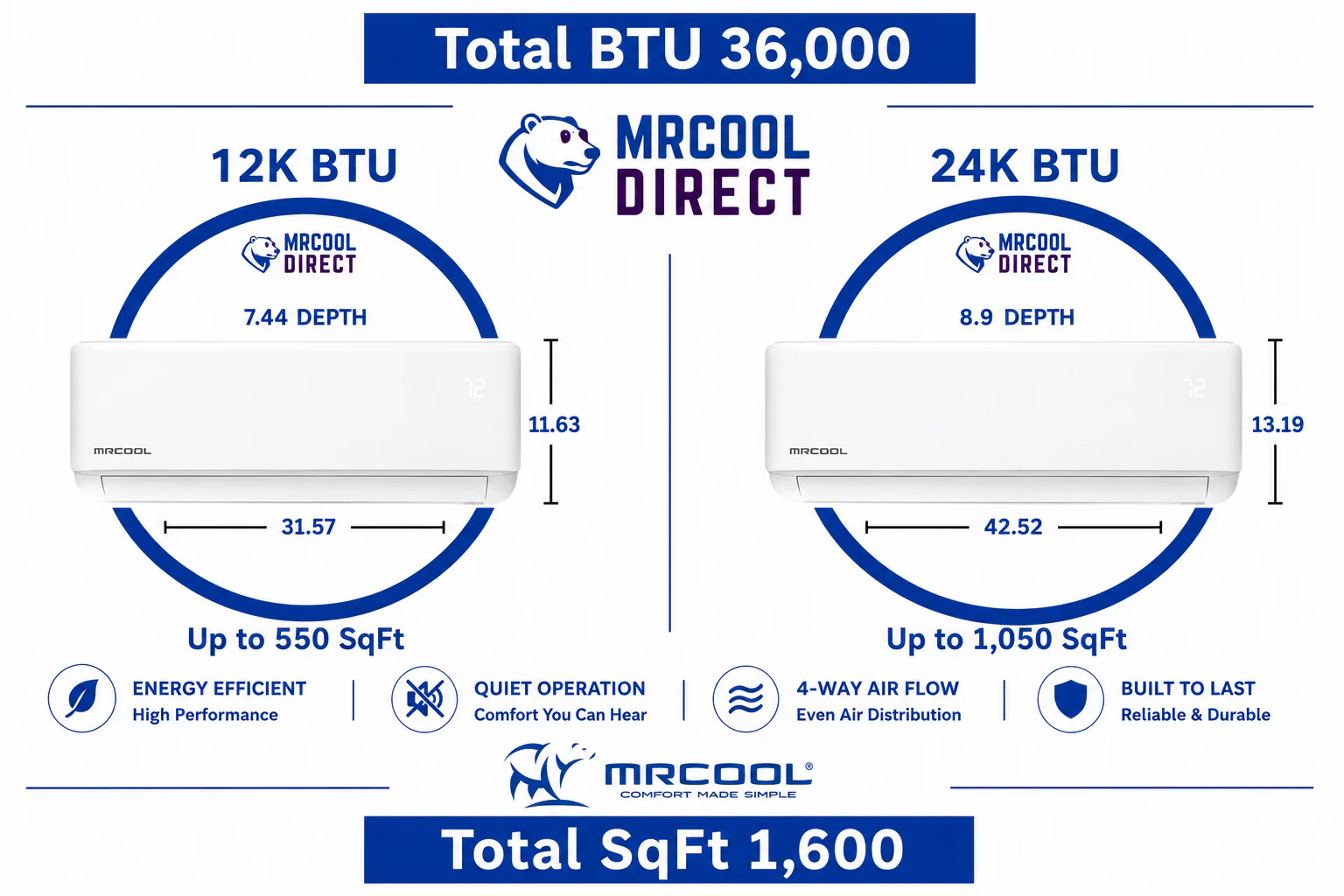

✔ 12K Wall Mount Air Handler (DIY-12-HP-WMAH-230D25-O)

• Ideal for up to 550 sq ft
• Whisper-quiet airflow
• Dry Mode for humidity control
• Follow Me® built-in temperature tracking
• Energy-efficient variable-speed fan



✔ 24K Wall Mount Air Handler (DIY-24-HP-WMAH-230D25-O)

• Comfort for up to 1,050 sq ft
• Heavy-duty airflow and consistent room coverage
• Multi-speed operation
• SmartHVAC wireless control
• Excellent for living rooms, large master bedrooms, or open layouts



✔ 25 ft R-454B Quick-Connect Line Set (DIY25-1438-O)

For the 12K air handler

• 1/4 × 3/8
• Factory pre-charged
• No handling refrigerant



✔ 25 ft R-454B Quick-Connect Line Set (DIY25-3858-O)

For the 24K air handler

• 3/8 × 5/8
• Heavy-duty design for large-capacity systems



Frequently Asked Questions

Is the MRCOOL DIYM236HPW06D07 a true DIY system?

Yes—no vacuum pump, gauges, or EPA certification required.



Can this system heat in freezing temperatures?

Absolutely. The 5th Gen inverter delivers strong cold-climate heating.



Are both indoor units independently controlled?

Yes. Each room has its own remote + app control + scheduling.



Can I expand later?

Yes—3 additional zones can be added in the future.



What breaker size does it require?

A 35A breaker with 30.5A MCA.
