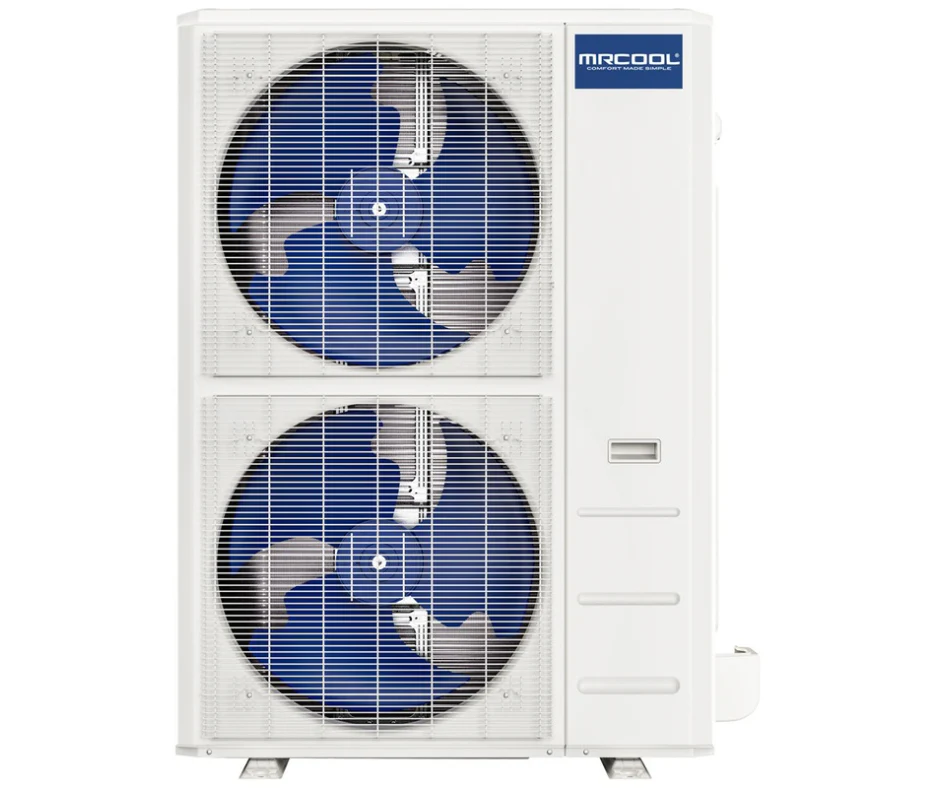

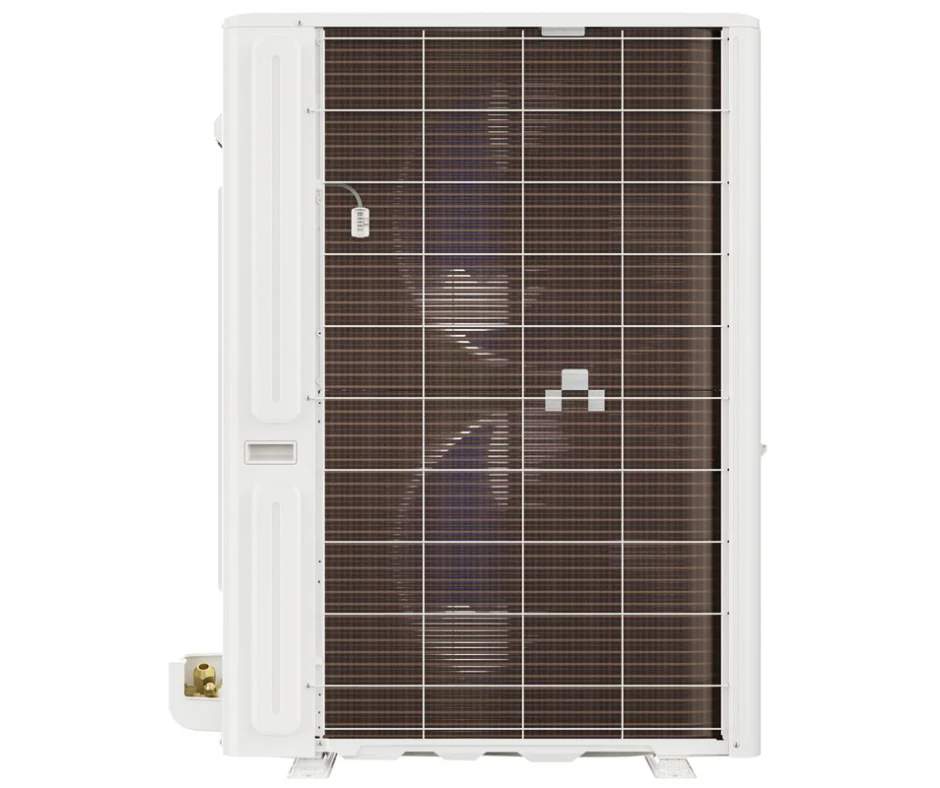

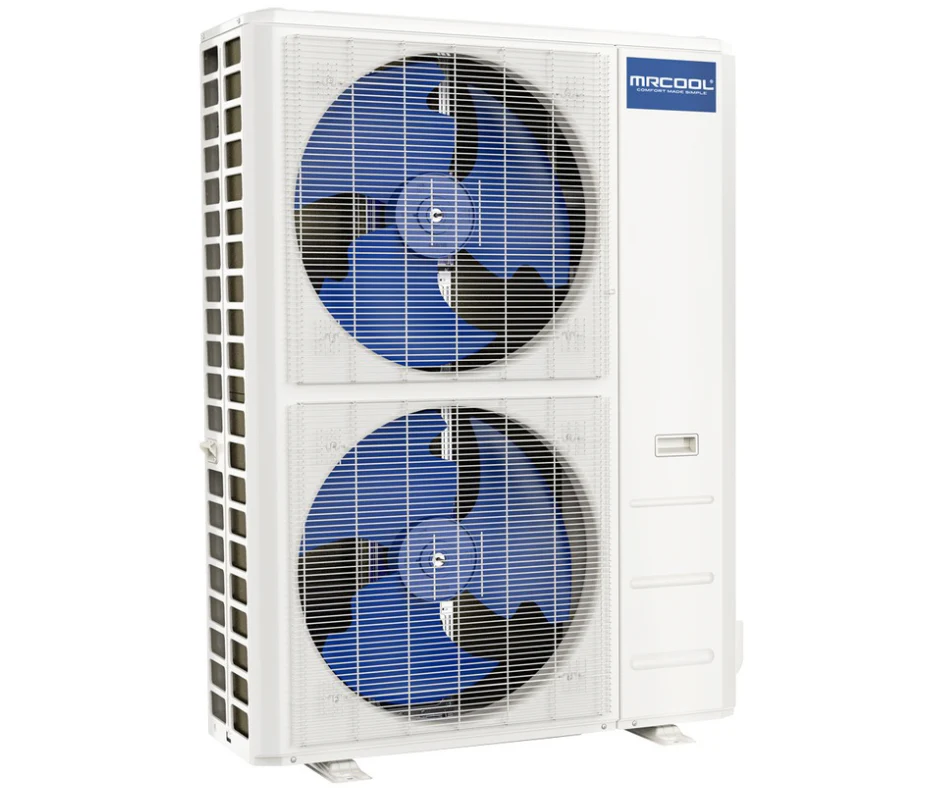

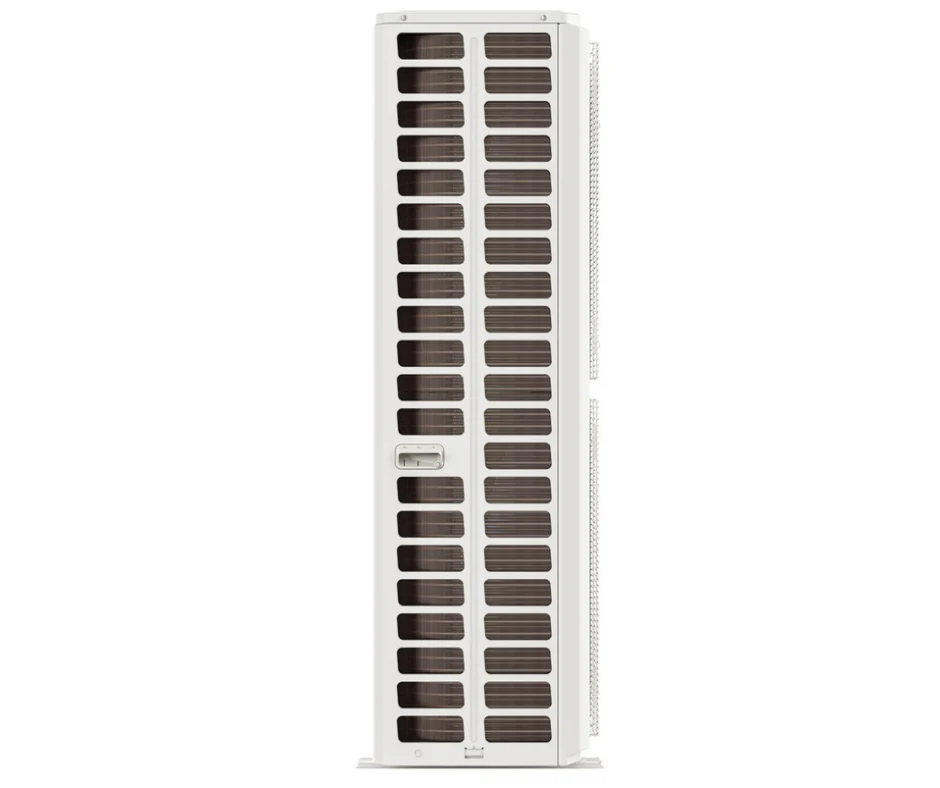

MRCOOL® Hyper Heat 2nd Gen 60K BTU 5 Ton 16 SEER2 Central Ducted Heat Pump Condenser, CENTRAL-60-HP-C-230B00-O
MRCOOL® Hyper Heat 2nd Gen 60K BTU 5 Ton 16 SEER2 Central Ducted Heat Pump Condenser, CENTRAL-60-HP-C-230B00-O
Product Description
The MRCOOL® Central Hyper Heat 60K (5-Ton) Condenser is designed for large homes and high-demand applications, delivering dependable comfort through extreme cold and peak summer heat. Powered by DC inverter and variable-speed technology, this 2nd Generation Hyper Heat system provides smooth operation, precise temperature control, and long-term energy efficiency.
With a 16.0 SEER2 efficiency rating and up to 56,000 BTU of heating capacity, this condenser maintains strong heating performance in cold climates where conventional heat pumps struggle. It pairs seamlessly with the MRCOOL® VersaPro® 5-Ton Central Ducted Air Handler and is also compatible with dual-fuel systems using gas or electric furnaces, giving installers maximum system flexibility.
The system operates on R-454B refrigerant, a next-generation, low-GWP solution that meets modern environmental standards. Built for durability, the outdoor unit features a painted galvanized steel cabinet, operates at 65 dBA, and WiFi and app-based smart control via the MRCOOL® Smart Thermostat. (Sold separately)
Backed by an industry-leading 10-year warranty covering the compressor, parts, and labor, the MRCOOL Central Hyper Heat 60K condenser delivers commercial-grade reliability with residential efficiency.
COMPATIBILITY & SYSTEM PAIRINGS
✔ MRCOOL® VersaPro® 5-Ton Central Ducted Air Handler
✔ Compatible with gas or electric furnaces (dual-fuel ready)
✔ Optional electric heat kits supported
✔ MRCOOL® Smart Thermostat included
✔ WiFi & mobile app control
TECHNICAL SPECIFICATIONS
Brand: MRCOOL
Series: Central Ducted Hyper Heat – 2nd Gen
Model: CENTRAL-60-HP-C-230B00-O
Unit Type: Split System Heat Pump
Equipment Type: Outdoor Condenser
Cooling Capacity: 54,000 BTU
Heating Capacity: 56,000 BTU
Tonnage: 5 Ton
SEER2: 16.0
EER2: 10.0
HSPF2 (Region 4): 9.0
HSPF2 (Region 5): 8.0
Voltage: 208/230V
Phase: 1
Frequency: 60 Hz
Max Breaker: 40A
Min Circuit Ampacity: 40A
Refrigerant Type: R-454B
Refrigerant Charge: 183.42 oz
Liquid Line: 3/8”
Suction Line: 3/4”
Sound Rating: 65 dBA
Certifications: ENERGY STAR®, AHRI, ETL
WiFi / App Control: Yes
Warranty:
• 10-Year Compressor
• 10-Year Parts
• 10-Year Labor
DIMENSIONS & WEIGHT
Net Dimensions:
• Width: 37.48”
• Depth: 16.34”
• Height: 52.48”
Net Weight: 242.95 lbs
Shipping Dimensions:
• Width: 43.11”
• Depth: 19.49”
• Height: 58.27”
Shipping Weight: 275.13 lbs
Note: These units are designed for use with No Vac Quick Connect Line Sets, which come pre-charged with R-454B refrigerant for a quicker and easier installation. Line sets are not included but can be purchased separately. If you prefer the traditional flare nut configuration, you're in luck—stub pipes and copper nuts are included
Frequently Asked Questions
Can this condenser be used with furnaces?
Yes. This unit supports dual-fuel installations when paired with a compatible air handler and gas or electric furnace.
Is this true Hyper Heat performance?
Yes. MRCOOL Hyper Heat systems are designed to maintain reliable heating output in cold climates where standard heat pumps lose efficiency.
What refrigerant does this system use?
It uses R-454B, a low-GWP refrigerant aligned with modern environmental standards.
