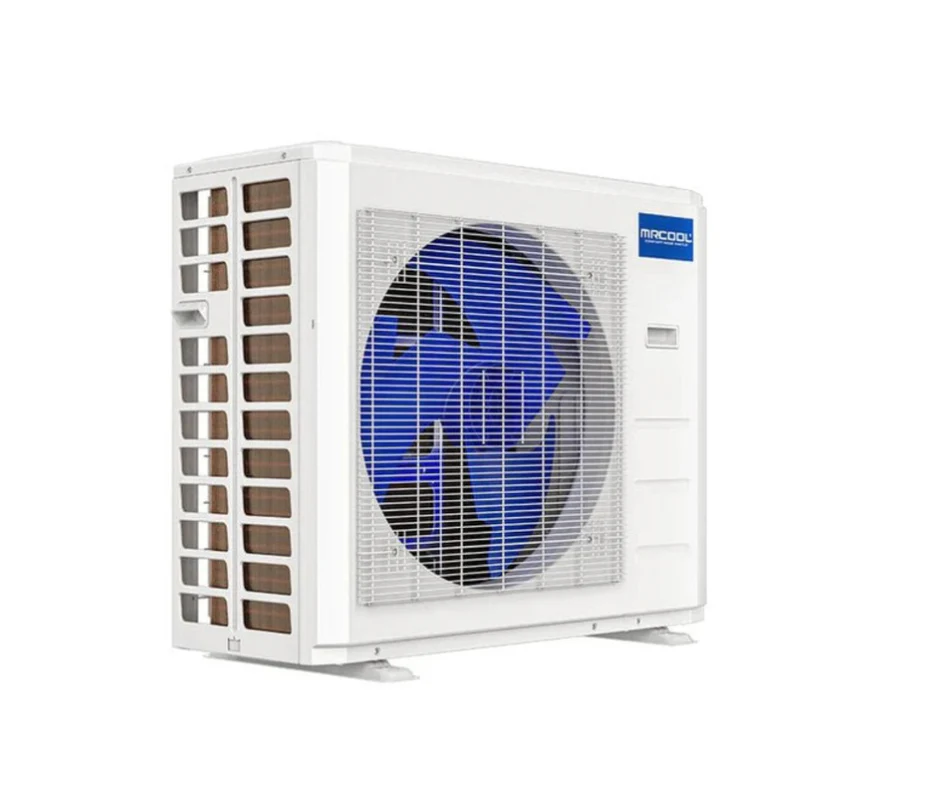

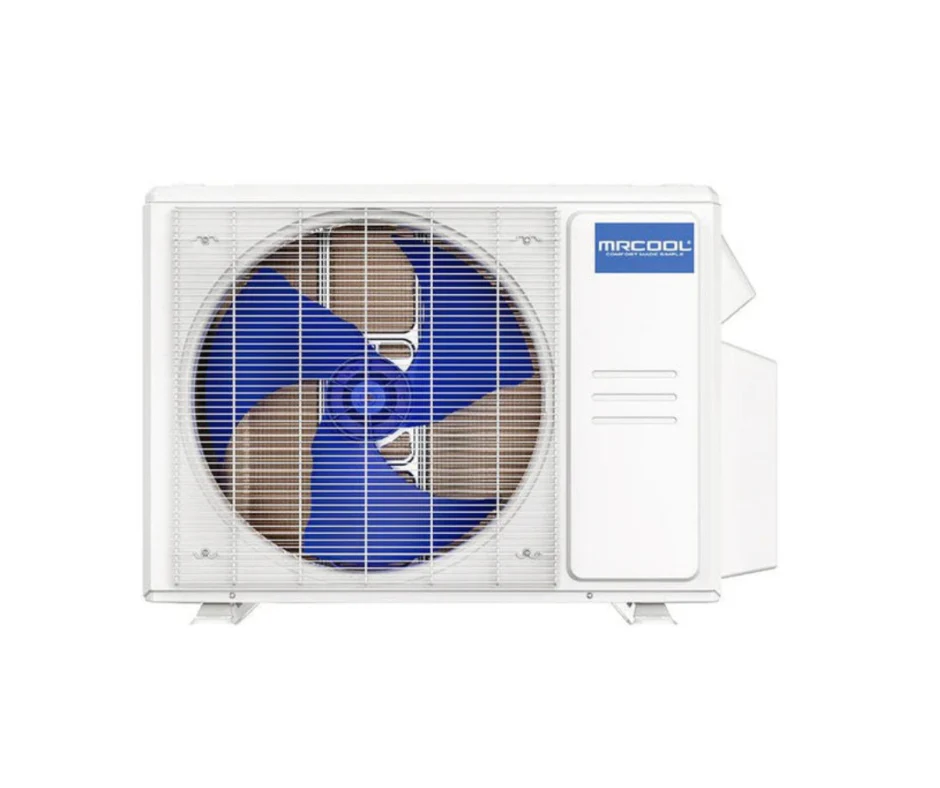

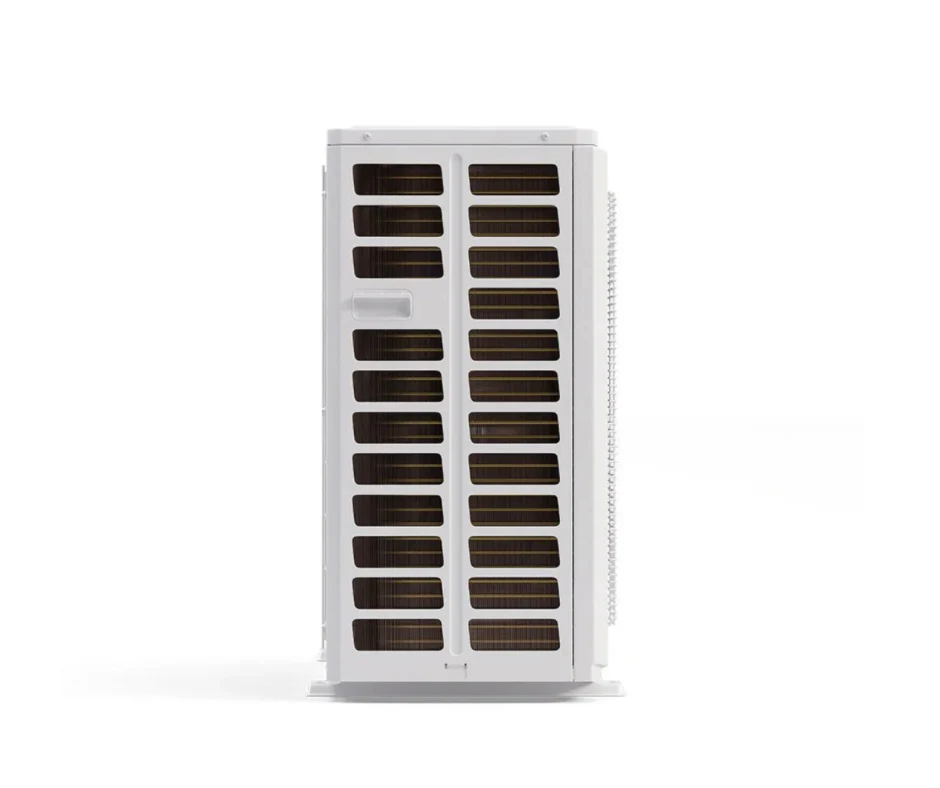

MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Condenser, CENTRAL-24-HP-C-230B00-O
MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Condenser, CENTRAL-24-HP-C-230B00-O
Product Description
The MRCOOL® Central Hyper Heat 24K (2-Ton) Condenser is built for homeowners and installers who demand reliable comfort in extreme climates—from scorching summers to freezing winter temperatures. Designed with DC inverter technology and variable-speed operation, this 2nd Generation Hyper Heat system delivers powerful, efficient heating and cooling while reducing energy consumption year-round.
With an impressive 18.3 SEER2 efficiency rating and Hyper Heat performance, this condenser maintains dependable heating output even in low outdoor temperatures. It is fully compatible with MRCOOL® VersaPro® Central Ducted Air Handlers and can also be paired with gas or electric furnaces, making it a flexible solution for both heat pump-only and dual-fuel systems.
The system uses R-454B refrigerant, a next-generation, low-GWP refrigerant designed to meet current and future environmental standards. Built for long-term durability, the outdoor unit features a painted galvanized steel cabinet, quiet operation at 60 dBA, and smart thermostat compatibility for full app-based control. (Sold separately)
Best of all, MRCOOL backs this condenser with an industry-leading 10-year warranty covering parts, compressor, and labor, with labor coverage activated automatically at installation.
WHAT THIS CONDENSER WORKS WITH
✔ MRCOOL® VersaPro® 2-Ton Central Ducted Air Handler
✔ Compatible with gas or electric furnaces (dual-fuel capable)
✔ Optional electric heat kits
✔ Smart thermostat (sold separately)
✔ WiFi & app control enabled
TECHNICAL SPECIFICATIONS
Brand: MRCOOL
Series: Central Ducted Hyper Heat – 2nd Gen
Model: CENTRAL-24-HP-C-230B00-O
Unit Type: Split System Heat Pump
Equipment Type: Outdoor Condenser
Cooling Capacity: 23,000 BTU
Heating Capacity: 24,000 BTU
Tonnage: 2 Ton
SEER2: 18.3
EER2: 11.7
HSPF2 (Region 4): 10
HSPF2 (Region 5): 8
Voltage: 208/230V
Phase: 1
Frequency: 60 Hz
Max Breaker: 20A
Min Circuit Ampacity: 19A
Refrigerant Type: R-454B
Refrigerant Charge: 74.08 oz
Liquid Line: 3/8”
Suction Line: 3/4”
Sound Rating: 60 dBA
Certifications: ENERGY STAR®, AHRI, ETL
WiFi / App Control: Yes
Warranty:
• 10-Year Compressor
• 10-Year Parts
• 10-Year Labor
DIMENSIONS & WEIGHT
Net Dimensions:
• Width: 35.04”
• Depth: 13.46”
• Height: 26.5”
Net Weight: 102.29 lbs
Shipping Dimensions:
• Width: 39.17”
• Depth: 15.67”
• Height: 29.13”
Shipping Weight: 109.13 lbs
Note: These units are designed for use with No Vac Quick Connect Line Sets, which come pre-charged with R-454B refrigerant for a quicker and easier installation. Line sets are not included but can be purchased separately. If you prefer the traditional flare nut configuration, you're in luck—stub pipes and copper nuts are included
Frequently Asked Questions
Does this condenser work with furnaces?
Yes. This unit can be paired with compatible air handlers or used in dual-fuel systems with gas or electric furnaces.
Is this true Hyper Heat?
Yes. MRCOOL Hyper Heat systems are designed to deliver reliable heating performance in cold climates where standard heat pumps struggle.
What refrigerant does it use?
This system uses R-454B, a next-generation, low-GWP refrigerant.
