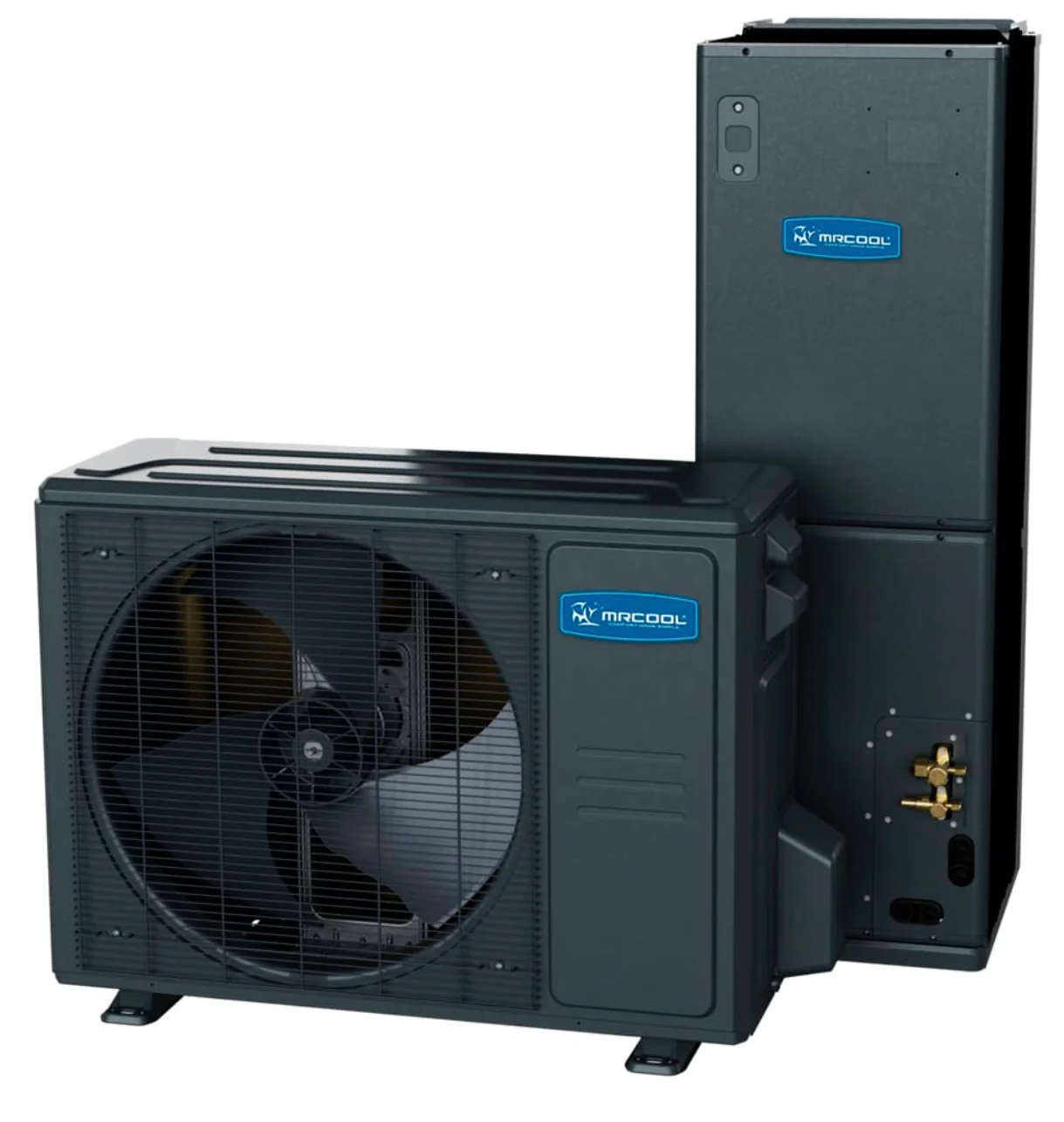

MRCOOL® Universal Series 60,000 BTU (5 Ton) Multi-Position Air Handler & Heat Pump Inverter Split System - R-454B Refrigerant, UHP1860AH1860-O
MRCOOL® Universal Series 60,000 BTU (5 Ton) Multi-Position Air Handler & Heat Pump Inverter Split System - R-454B Refrigerant, UHP1860AH1860-O
Introducing the MRCOOL® Universal Series, a cutting-edge heating and cooling solution designed to deliver optimal comfort year-round. Engineered for efficiency, this 5 Ton MRCOOL System is equipped with a DC Inverter condenser that adjusts its performance to achieve your ideal temperature with remarkable energy savings. Whether in the sweltering heat of summer or the coldest winter months, this system ensures consistent, reliable comfort.

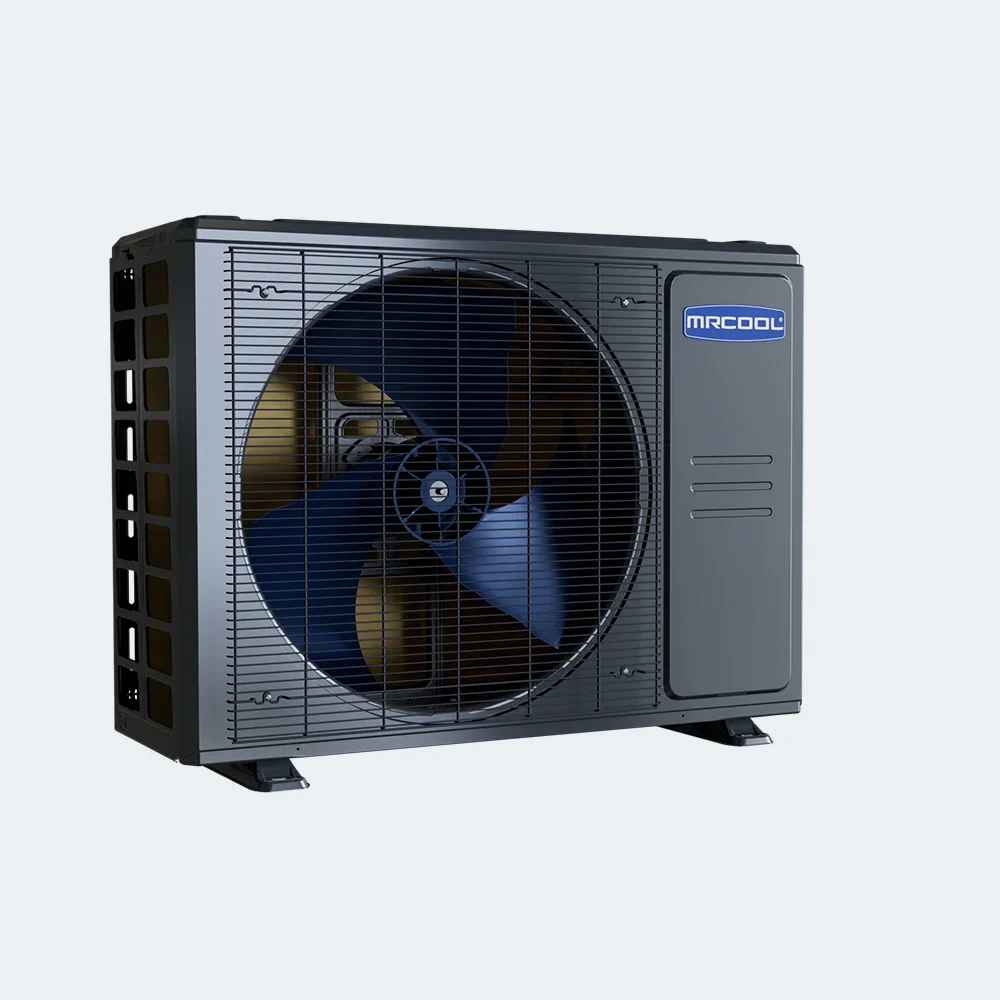

Condenser
The MRCOOL® 5 Ton Universal Central Heat Pump Condenser represents the pinnacle of HVAC innovation. Its superior performance not only ensures excellent cooling and heating but also operates at impressively low noise levels. With an environmentally friendly design, this condenser maximizes energy efficiency and comfort.
- Efficiency Ratings: 17.5 SEER2
- Operating Temperature: Heat -13 @ 100% down to -22°F to 122°F
- Compatibility: Works seamlessly with third-party air handlers and thermostats, including WiFi-enabled models like Nest and Honeywell
-
Features:
- Rapid cooling and heating capability
- Internal fan blade design for quiet operation
- Pre-charged with eco-friendly R454B refrigerant
- Certifications: ETL and AHRI certified
Air Handler
The MRCOOL® Universal 5 Ton Air Handler is built for performance and quiet operation, driven by a powerful DC fan motor. Its thoughtful design ensures maximum efficiency and reliability while providing versatile installation options.
COMPATIBLE HEAT KITS
1. 10kW Model- UHK10
2. 15kW Model- UHK15
3. 10kW Model- UHK20
- Efficiency Rating: Up to 17.5 SEER2
- Connection Types: Patented Pre-Charged No-Vac, Sweat Braze Fitting, and Flare Fitting
- Safety Features: Fire-proof electrical box designed to prevent electric shock; reserved space for circuit breaker installation
- Filter: 20x20x1
- Installation: Flexible multi-position options (upflow, downflow, or horizontal)
- Condensation Protection: Dual-layer protection for enhanced safety
What’s Included
1 MRCOOL® 5 Ton Universal Central Heat Pump 60k btu Condenser
1 MRCOOL® Universal 5 Ton 60k Btu Air Handler
SPECIFICATIONS & DIMENSIONS
DIMENSIONS
| Condenser Dimensions | 34.78" W x 16.34" D x 52.48" H |
|---|---|
| Air Handler Dimensions | 21.50" W x 21.50" D x 55.94" H |
| Condenser Weight | 242.95 lbs |
| Air Handler Weight | 188.05 lbs |
| CAPACITY & PERFORMANCE | |
| Cooling Capacity | 54,000 BTU |
| Outdoor Operating Temperature (Cooling) | -22°F to 122°F |
| SEER2 | 17.5 |
| EER2 | 12 |
| Heating Capacity | 55,000 BTU |
| Outdoor Operating Temperature (Heating) | -22°F to 75°F |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7.7 |
| Coverage Area | Up to 2,500 sq. ft. |
| Outdoor Noise Level | 64 dB(A) |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 60 / 57 / 54 / 37 dB(A) dB(A) |
| ELECTRICAL REQUIREMENTS | |
| Condenser | Voltage: 208-230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 40A Min Circuit Ampacity: 40A |
| Air Handler | Voltage: 115/208/230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 15A Min Circuit Ampacity: 14.5/10A |
| REFRIGERANT & PIPING | |
|---|---|
| Refrigerant Type | R-454B |
| Refrigerant Volume | 183.42 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Max Line Set Length | 246 ft. |
| FEATURES | |
| Air Handler Mount Type | Multi-Position (Upflow/Downflow/Horizontal) |
| Filter Type | Replaceable |
| Filter Size | 20" x 20" x 1" |
| Compressor Type | Rotary |
| Metering Device | EXV |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Compatible Auxiliary Heater Sizes | 10 KW / 15 KW / 20 KW |
| CERTIFICATIONS & WARRANTY | |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 10 Year Parts and 2 Year Labor |
