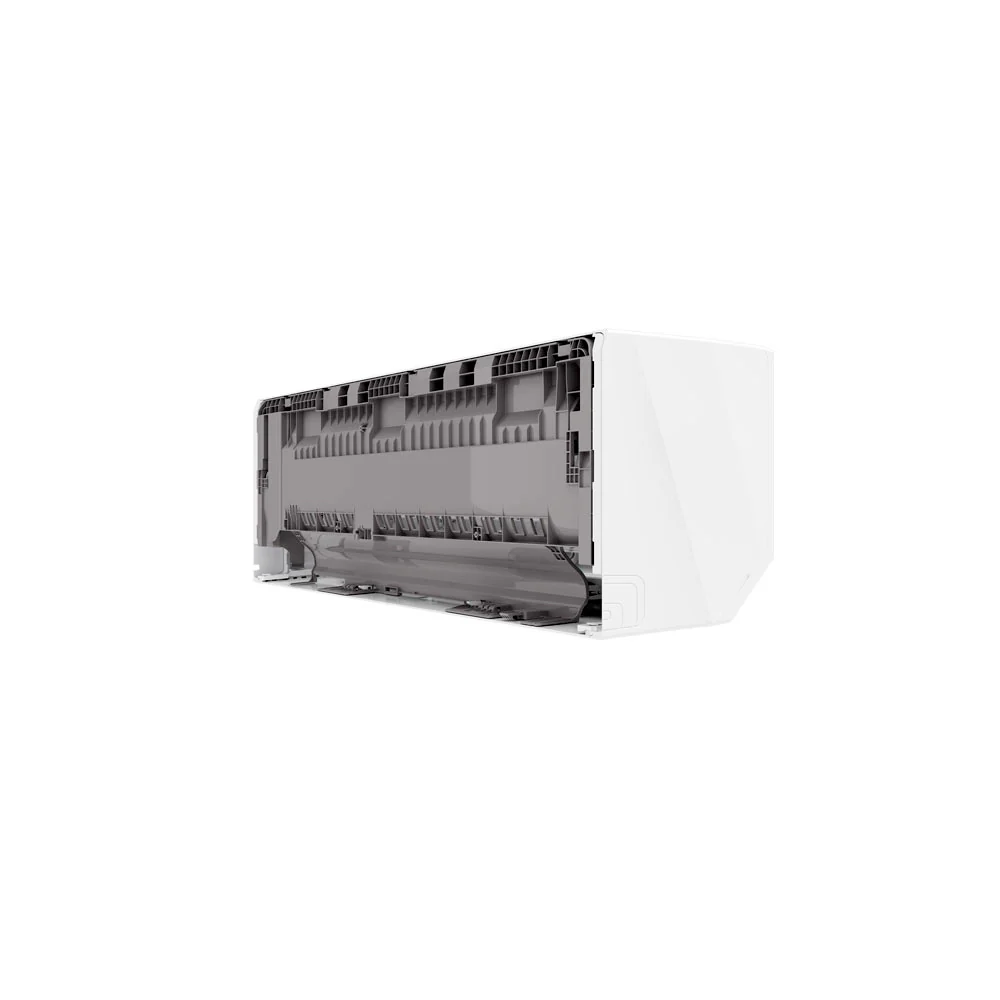

MRCOOL® Olympus 12,000 BTU 1 Ton Ductless Mini Split Wall Mounted Air Handler 230V/60Hz, O-12-HP-WMAH-230C-O (NON-DIY)

DESCRIPTION

The MRCOOL® OLYMPUS ESTAR® 12k Series air handler provides reliable heating and cooling for spaces up to 500 square feet, making it ideal for bedrooms, offices, or garages. Compact and easy to install, it offers smart Wi-Fi control through the MRCOOL® Smart HVAC app, plus a handheld remote for quick adjustments. With high-efficiency ratings—SEER2 25.4, EER2 13.4, and HSPF2-4 10.5—you can enjoy year-round comfort while saving on energy costs. Operating quietly at just 47 dB and using eco-friendly R-454B refrigerant, this unit combines powerful performance with modern convenience. It’s also compatible with Amazon Alexa and Google Assistant and backed by an industry-leading warranty for long-lasting reliability.

Compact Design: Perfect for smaller spaces up to 500 sq. ft., offering efficient comfort for bedrooms, offices, and garages.
Smart Control: Wi-Fi compatible with the MRCOOL® Smart HVAC app for remote access from your smartphone or tablet.
Voice Compatibility: Works seamlessly with Amazon Alexa and Google Assistant for hands-free operation.
Energy Efficient: Delivers SEER2 25.4, EER2 13.4, and HSPF2-4 10.5 performance ratings for lower utility costs.
Quiet Operation: Operates at a low 47 dB noise level, maintaining comfort without distraction.
Eco-Friendly Refrigerant: Uses R-454B, a next-generation refrigerant with reduced environmental impact.
Flexible Control Options: Includes a remote control for convenient manual operation.
Reliable Warranty: Covered by a 5-year parts warranty.

SPECIFICATIONS & DIMENSIONS

DIMENSIONS
Dimensions	33.74" W x 9.09" D x 11.81" H
Mount Type	Wall
Weight	22.93 lbs



CAPACITY & PERFORMANCE
Tonnage	1 Ton
Capacity	12,000 BTU
Coverage Area	351 to 500 sq ft.



DIMENSIONS
Dimensions	33.74" W x 9.09" D x 11.81" H
Mount Type	Wall
Weight	22.93 lbs
CAPACITY & PERFORMANCE
Tonnage	1 Ton
Capacity	12,000 BTU
Coverage Area	351 to 500 sq ft.



ELECTRICAL REQUIREMENTS
Voltage	208-230V
Phase	1
Cycle	60 Hz
Max Fuse Breaker	15A
Min Circuit Ampacity	3A



REFRIGERANT & PIPING
Refrigerant Type	R-454B
Liquid Line Size	1/4"
Suction Line Size	3/8"



DIMENSIONS
Dimensions	33.74" W x 9.09" D x 11.81" H
Mount Type	Wall
Weight	22.93 lbs
CAPACITY & PERFORMANCE
Tonnage	1 Ton
Capacity	12,000 BTU
Coverage Area	351 to 500 sq ft.
ELECTRICAL REQUIREMENTS
Voltage	208-230V
Phase	1
Cycle	60 Hz
Max Fuse Breaker	15A
Min Circuit Ampacity	3A
REFRIGERANT & PIPING
Refrigerant Type	R-454B
Liquid Line Size	1/4"
Suction Line Size	3/8"
FEATURES
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
Wifi Compatibility	Yes
App Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
Remote Control Included	Yes



CERTIFICATION & WARRANTY
Certifications	UL Listed, ETL Listed, AHRI Certified
Warranty	5 Year Parts
