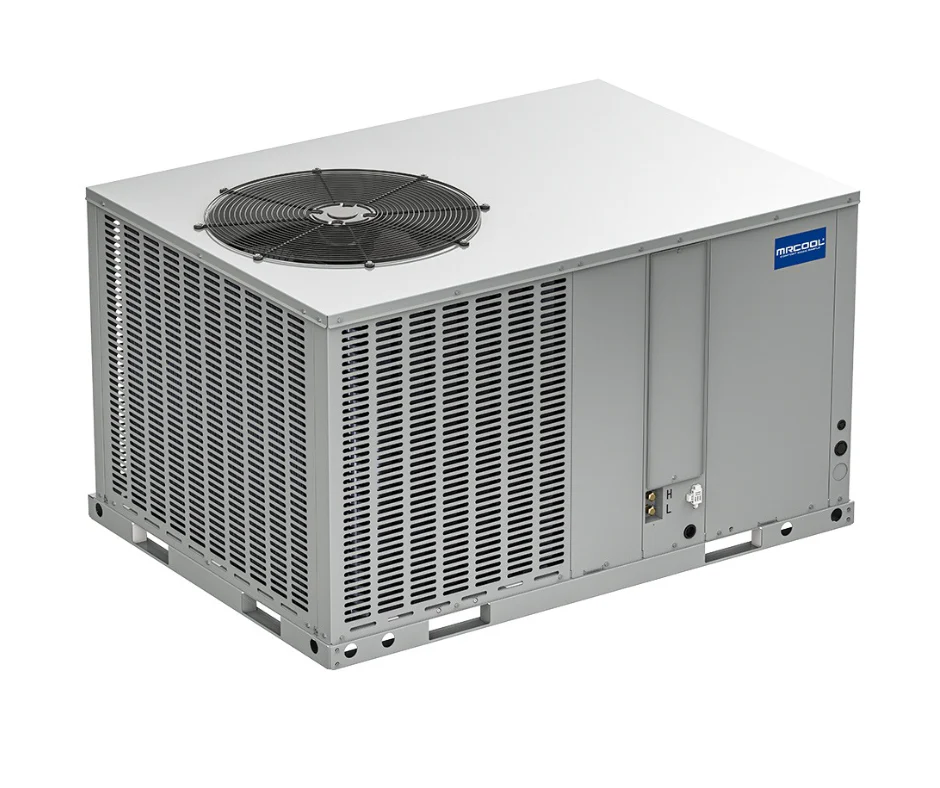

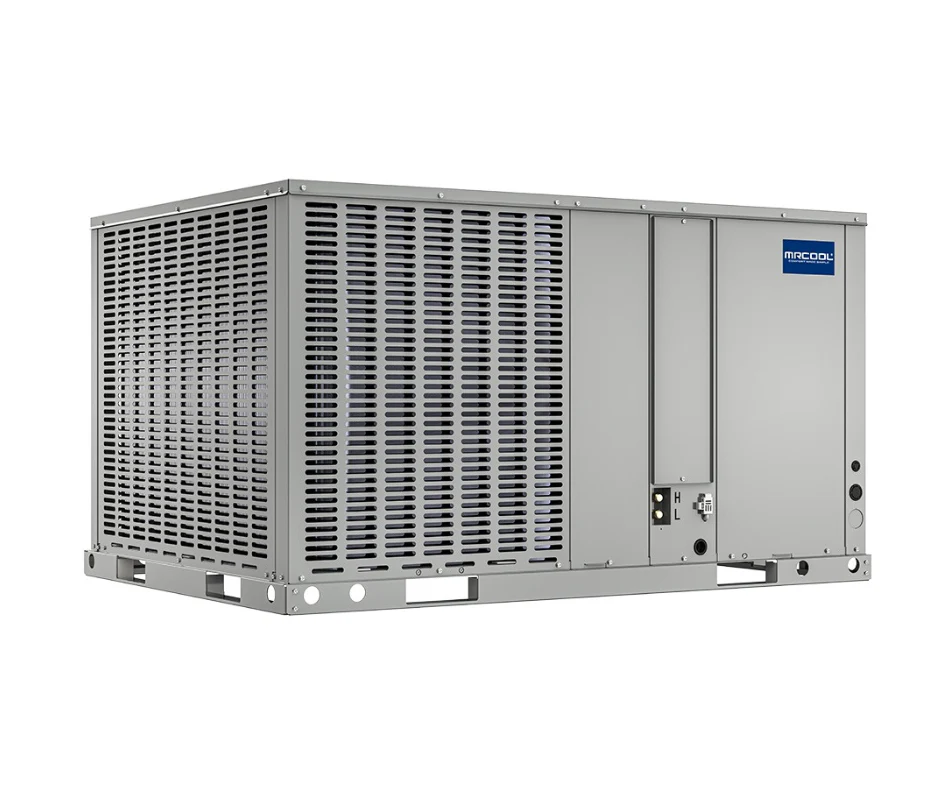

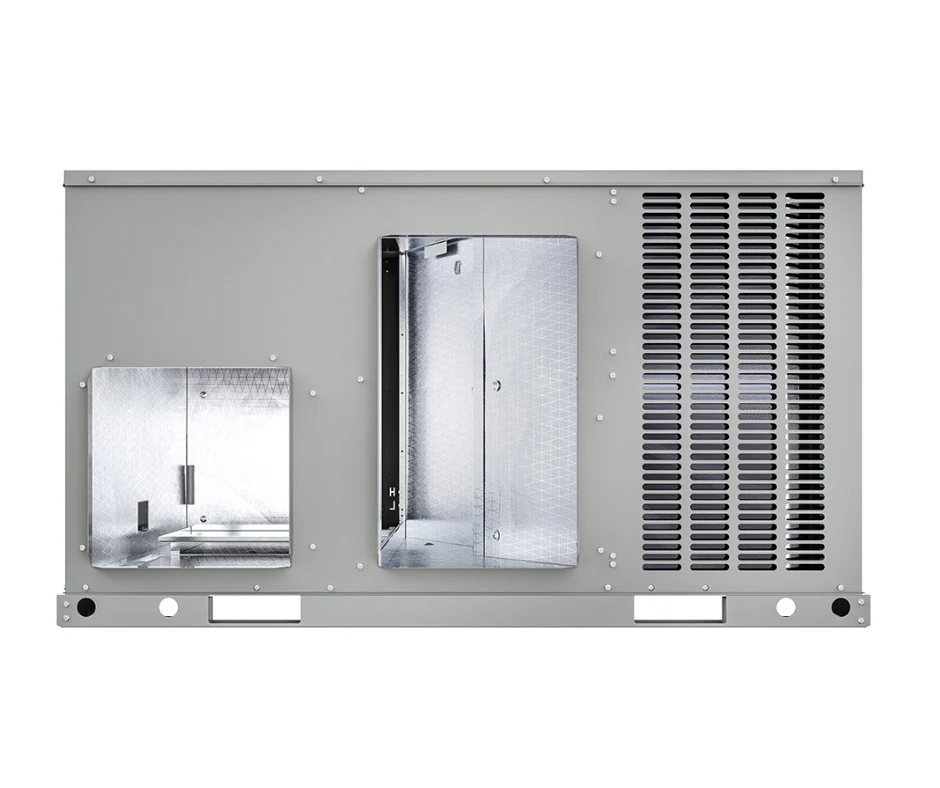

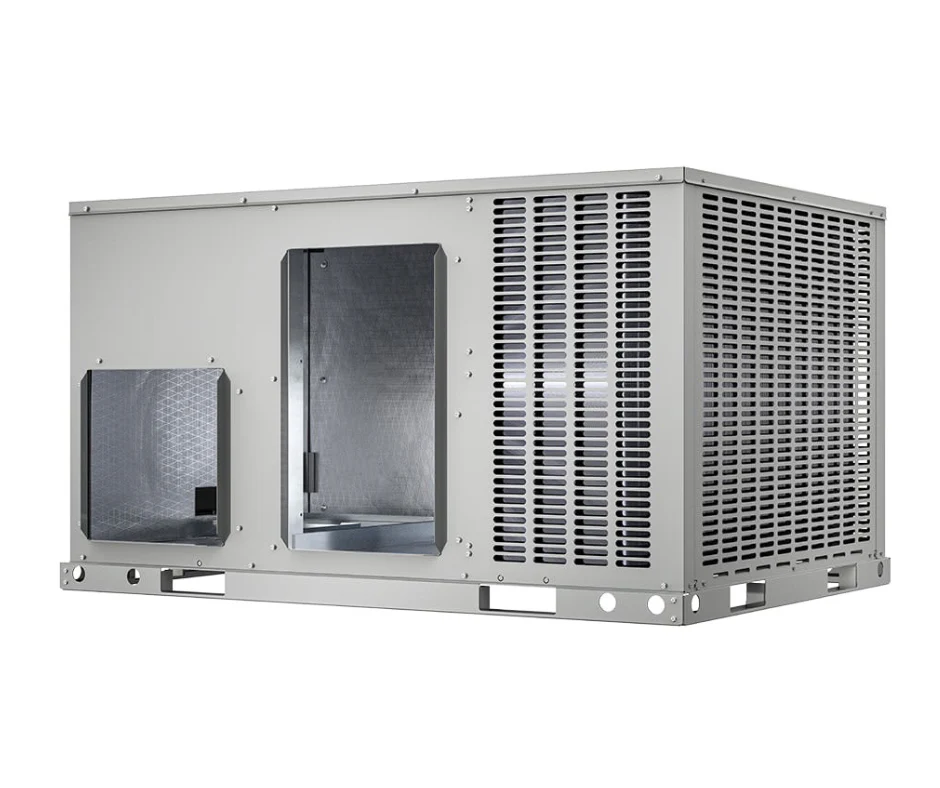

MRCOOL® VersaPro® 5-Ton Package Heat Pump 13.4 SEER2 (56,500 BTU Cooling & 56,000 BTU Heating) R-454B — MPH601HO13C

Product Description

The MRCOOL® VersaPro® MPH601HO13C Package Heat Pump is a 5-ton, high-capacity all-in-one HVAC system engineered to deliver powerful, reliable comfort for larger homes, multi-room spaces, and demanding residential applications. Designed to handle extreme seasonal conditions, this packaged heat pump provides efficient cooling in summer and dependable heating in winter—all from a single outdoor unit.



With a 13.4 SEER2 efficiency rating, the VersaPro® 60K is built to reduce energy consumption while maintaining consistent performance. The system operates on R-454B refrigerant, a next-generation, low-GWP refrigerant that meets current and future environmental standards—making it a smart, compliant replacement for older packaged systems.



Durability is a core design feature. A power-painted galvanized steel cabinet protects internal components from corrosion, moisture, and harsh outdoor conditions. The horizontal discharge configuration helps minimize operating noise, making it suitable for residential neighborhoods and space-restricted installations. Inside the cabinet, aluminum tubing and fin coils deliver excellent heat transfer while resisting corrosion better than traditional copper coils, reducing long-term maintenance and extending system life.



At the heart of the system, a high-efficiency scroll compressor works together with an ECM condenser fan motor and an ECM indoor blower motor to provide smooth airflow, balanced temperature control, and reliable operation under heavy loads. Integrated safety controls continuously monitor pressure levels and coil temperatures to protect the system and ensure stable performance year-round.



Backed by industry-leading warranties, the MRCOOL® VersaPro® MPH601HO13C is a long-term investment in comfort, efficiency, and peace of mind.



 KEY FEATURES & BENEFITS

• 5-Ton Packaged Heat Pump – High-capacity heating & cooling in one unit
• 13.4 SEER2 Efficiency – Reduced energy usage & lower utility bills
• R-454B Refrigerant – Low global warming potential & EPA-compliant
• 56,500 BTU Cooling / 56,000 BTU Heating – Built for large spaces
• All-In-One Outdoor System – No indoor air handler required
• Horizontal Discharge Design – Quieter residential operation
• Galvanized Steel Cabinet – Weather-resistant & corrosion-protected
• Aluminum Coil Technology – Improved heat transfer & longevity
• Auxiliary Heat Ready – Supports 5kW–20kW heat kits
• AHRI, UL, ETL & CSA Certified – Verified safety & performance



 ELECTRICAL & PERFORMANCE

• Voltage: 208 / 230V
• Phase: 1
• Frequency: 60 Hz
• Max Breaker: 60 Amps
• Minimum Circuit Ampacity (MCA): 48.6 Amps
• CFM: 1,750
• Min Ambient Cooling: 32°F
• Min Ambient Heating: -0.4°F



 TECHNICAL SPECIFICATIONS

• Tonnage: 5 Ton
• SEER2: 13.4
• EER2: 11
• HSPF2-4: 6.7
• Cooling Capacity: 56,500 BTU
• Heating Capacity: 56,000 BTU
• Refrigerant: R-454B (95 oz)
• Compressor Type: Scroll
• Condenser Fan Motor: ECM
• Blower Motor: ECM (3-Speed)
• Control Type: 24V Thermostat



• Aux Heat Available: Yes  compatible listed below.
  • 5kW         Model- MHK05PB
  • 7.5kW      Moldel- MHK07PB
  • 10kW       Model- MHK10PB
  • 15kW       Model- MHK15PB
  • 20kW.      Model- MHK20PB



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 42.06 in
• Height: 33.06 in
• Depth: 58.5 in

Weight

• Net Weight: 450 lbs
• Shipping Weight: 467 lbs



WARRANTY INFORMATION

Registered Warranty

• 10-Year Parts
• 10-Year Compressor

Base Warranty

• 5-Year Parts
• 5-Year Compressor



FREQUENTLY ASKED QUESTIONS

Q: Is this a complete HVAC system?

A: Yes. This is a self-contained packaged heat pump that does not require an indoor air handler.



Q: Does this system support electric auxiliary heat?

A: Yes. Optional auxiliary heat kits from 5kW up to 20kW are supported for cold-climate performance.



Q: What refrigerant does this unit use?

A: R-454B, a modern, low-GWP refrigerant designed for future compliance.



Q: Is this unit suitable for residential installations?

A: Absolutely. The horizontal discharge design and quiet operation make it ideal for residential applications.
