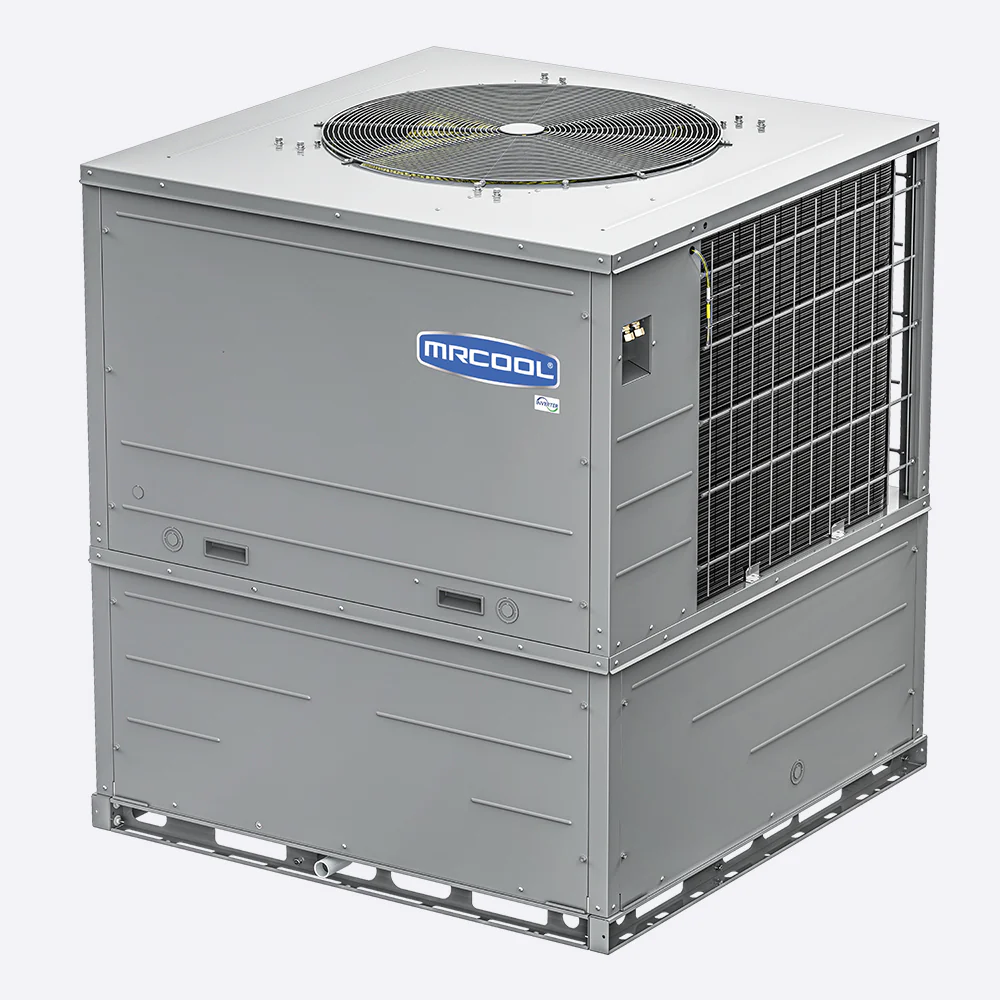

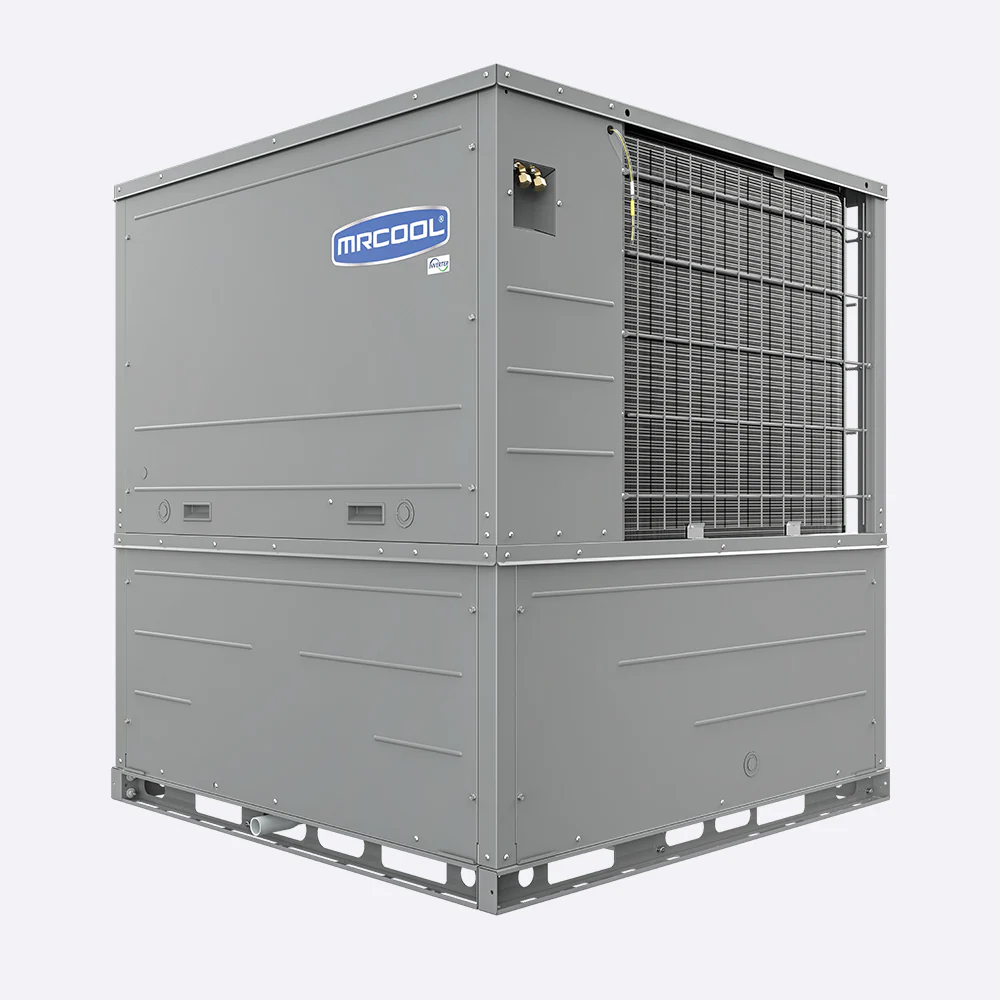

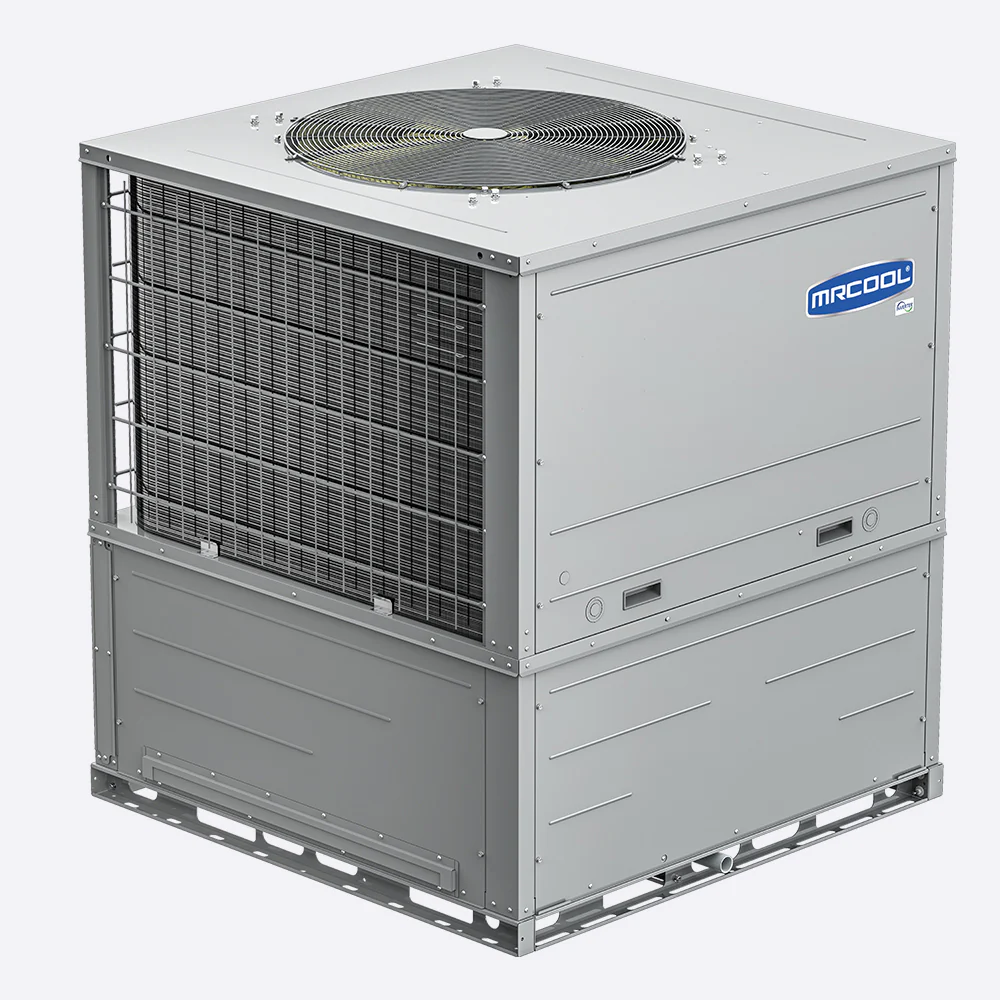

MRCOOL® Universal® 24,000 BTU DC Inverter Packaged Heat Pump — 18 SEER2, All-in-One Ducted System (MDPH180244)- R-410A

 Product Description

The MRCOOL® Universal® MDPH180244 DC Inverter Packaged Heat Pump is a high-efficiency, all-in-one ducted HVAC solution engineered to deliver quiet operation, precise temperature control, and lower energy costs without relying on fossil fuels. Designed as a single outdoor packaged system, this unit provides both heating and cooling through your ductwork, making it ideal for homeowners seeking a clean, modern replacement for older split systems or gas-based equipment.



At the core of this system is advanced DC inverter technology, which allows the compressor and fan motors to modulate output instead of cycling on and off. This results in steadier indoor temperatures, reduced electrical consumption, and significantly quieter operation compared to traditional single-stage package units. The system continuously adapts to indoor and outdoor conditions, delivering only the energy needed to maintain comfort.



With an 18 SEER2 efficiency rating, HSPF2 of 8.8, and ENERGY STAR® certification, the MRCOOL® Universal® packaged inverter heat pump is built to reduce long-term operating costs while maintaining strong performance across a wide climate range. It operates in cooling temperatures up to 125°F and provides dependable heating down to -22°F, making it suitable for both hot summers and cold winters.



Installation flexibility is another major advantage. The MDPH180244 supports side or bottom air return, allowing for traditional ground-level installs or rooftop applications. Optional electric heat kits are available for additional auxiliary heating if required. Intelligent defrost technology automatically detects frost conditions and optimizes winter heating performance.



Backed by industry-leading 10-year warranties on parts, compressor, and labor — with no registration required, the MRCOOL® Universal® DC Inverter Packaged Heat Pump delivers confidence, efficiency, and year-round comfort in one powerful unit.



KEY FEATURES & BENEFITS

• DC Inverter Technology – Variable-speed operation for quieter performance and higher efficiency
• 18 SEER2 / 8.8 HSPF2 Efficiency – ENERGY STAR® certified for lower utility costs
• All-in-One Packaged Design – Heating and cooling in a single outdoor unit
• Wide Operating Range – Cooling up to 125°F, heating down to -22°F
• Flexible Air Return – Side or bottom return for ground or rooftop installs
• Intelligent Defrost Control – Optimizes heating performance in winter conditions
• Wired Thermostat Included – Simple, reliable system control
• Optional Auxiliary Heat Kits Available – Expand heating capability when needed
• No Fossil Fuels Required – Fully electric, environmentally conscious comfort



SYSTEM PERFORMANCE & ELECTRICAL

• Cooling Capacity: 24,000 BTU
• Heating Capacity: 24,000 BTU
• Tonnage: 2 Ton
• SEER2: 17.8
• EER2: 11
• HSPF2: 8.8
• COP (47°F): 11.6
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 40A
• Min Circuit Ampacity: 35A



TECHNICAL SPECIFICATIONS

• Model: MDPH180244
• Series: MRCOOL® Universal® Inverter Packaged Heat Pump
• Refrigerant: R-410A
• Refrigerant Charge: 176.4 oz
• Compressor Type: DC Inverter Rotary
• Condenser Fan Motor: DC
• Condenser Fan RPM: 920
• Sound Rating: 63 dBA (Low) / 73 dBA (High)
• Filter Type: Washable Aluminum
• Filter Size: 28 × 9 × 3/5 in
• Auxiliary Heat: Optional
• Wi-Fi: No (wired thermostat included)



 DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 44 in
• Height: 49.25 in
• Depth: 35.43 in
• Net Weight: 523 lbs

Shipping Dimensions

• Width: 35.94 in
• Height: 50.81 in
• Depth: 44.63 in
• Shipping Weight: 545 lbs



WARRANTY (NO REGISTRATION REQUIRED)

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years
• Labor Warranty: 10 Years



FREQUENTLY ASKED QUESTIONS

Q: Is this a split system or packaged unit?

A: This is a fully packaged heat pump, with all components housed in a single outdoor unit.



Q: Does it work in cold climates?

A: Yes. It provides heating down to -22°F and includes intelligent defrosting for winter performance.



Q: Is gas required?

A: No. This is a fully electric system — no gas or fossil fuels needed.



Q: Can I add auxiliary heat?

A: Yes. Optional electric heat kits are available if additional backup heat is desired.
