MRCOOL® 27K 4-Zone DIY® Mini Split System (6K + 9k + 12k) Air Handlers & 16ft + two 25ft QuickConnect® Line Sets- R-454B DIYM327HPW04D06

Product Description

Model: DIYM327HPW04D06



The MRCOOL® DIYM327HPW04D06 4-Zone Mini Split System delivers powerful, energy-efficient comfort with the flexibility of a true DIY® installation. Built around the MRCOOL® DIY® 5th Generation 27K multi-zone condenser, this system is designed for homeowners who want professional-grade heating and cooling without contractor labor costs.

This carefully balanced bundle includes 6K, 9K, and 12K BTU wall-mounted air handlers, making it ideal for homes with mixed room sizes such as bedrooms, offices, living areas, and bonus rooms. Each zone operates independently, allowing you to fine-tune comfort where it matters most while maximizing efficiency.

Installation is simplified using MRCOOL®’s patented DIY® QuickConnect® technology, which removes the need for vacuum pumps, refrigerant charging, or HVAC licensing. All included line sets arrive factory-sealed and pre-charged with R-454B refrigerant, providing a faster, safer install while meeting modern environmental standards.

Advanced comfort features like Gold Fin® corrosion-resistant coils, Follow Me® temperature sensing, and full app-based control through the MRCOOL® Smart HVAC Controller® make this system both powerful and intuitive. You can also connect the system to Amazon Alexa or Google Assistant for hands-free control.

If you want a multi-zone system that’s efficient, expandable, and homeowner-installable, the MRCOOL® DIYM327HPW04D06 is built to outperform traditional HVAC solutions while keeping long-term ownership costs low.





📦 WHAT’S INCLUDED IN THIS COMPLETE DIY® BUNDLE

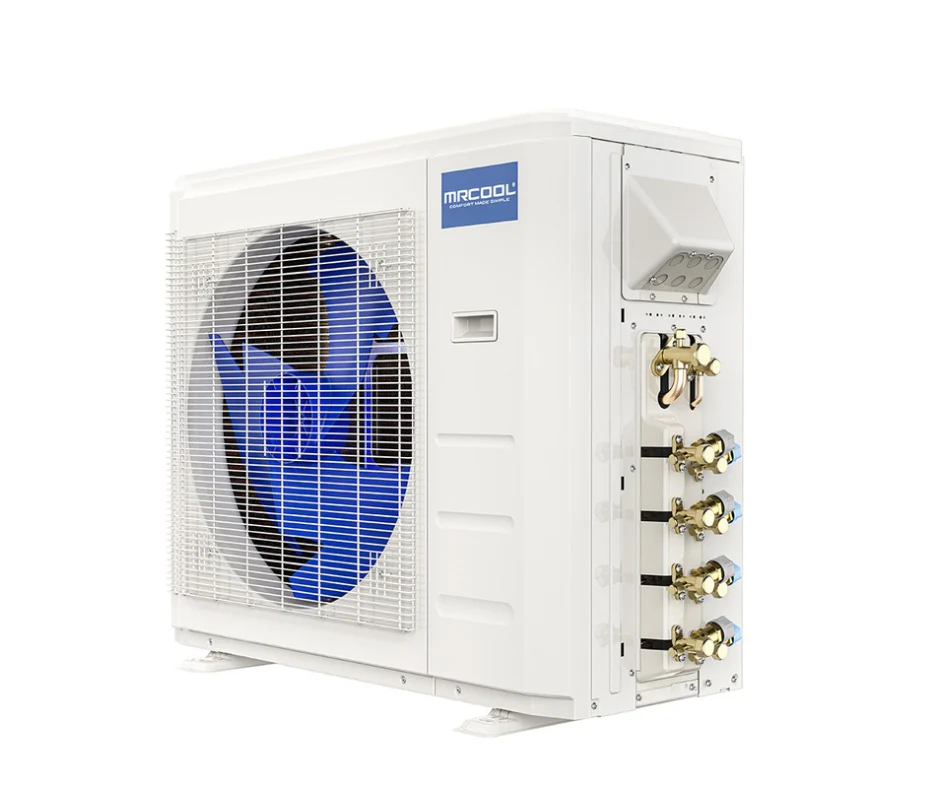

✔ MRCOOL® DIY® 4-Zone Outdoor Condenser

• Model: DIY-MULTI4-27HP230D-O

• 27,000 BTU | 208/230V | DC Inverter Heat Pump

• Max Breaker: 35A | Min Circuit Ampacity: 30.5A

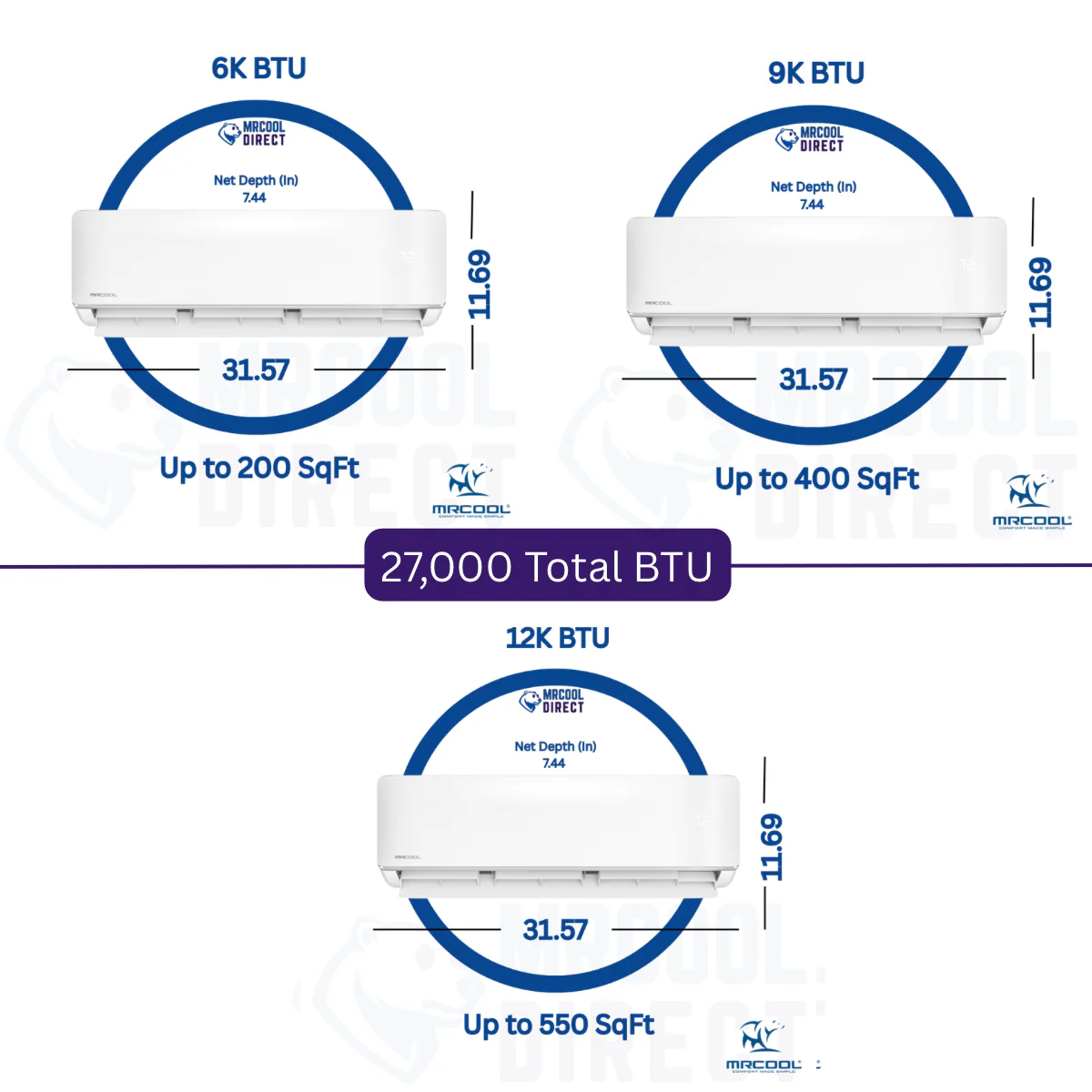

✔ (1) MRCOOL® DIY® 6K BTU Wall-Mounted Air Handler

• Model: DIY-06-HP-WMAH-230D25-O

• Ideal for rooms up to ~200 sq. ft.



✔ (1) MRCOOL® DIY® 9K BTU Wall-Mounted Air Handler

• Model: DIY-09-HP-WMAH-230D25-O

• Ideal for rooms up to ~350 sq. ft.



✔ (1) MRCOOL® DIY® 12K BTU Wall-Mounted Air Handler

• Model: DIY-12-HP-WMAH-230D25-O

• Ideal for rooms up to ~550 sq. ft.



✔ (1) MRCOOL® DIY® 16 ft QuickConnect® Line Set

• Model: DIY16-1438-O



✔ (2) MRCOOL® DIY® 25 ft QuickConnect® Line Sets

• Model: DIY25-1438-O

✔ Wireless remotes for each air handler

✔ DIY® QuickConnect® fittings

✔ Factory-sealed refrigerant system

📱 Smart phone not included





⚙️ ELECTRICAL & SYSTEM SPECIFICATIONS

• Voltage: 208/230V
• Phase: Single Phase
• Zones Supported: Up to 4
• Refrigerant: R-454B
• Condenser Max Breaker: 35 Amps
• Condenser Minimum Circuit Ampacity: 30.5 Amps
• Installation: True DIY® — No HVAC license required



❓FREQUENTLY ASKED QUESTIONS







Can I install this system myself?

Yes. MRCOOL® DIY® systems are engineered specifically for homeowner installation.



Do I need HVAC tools or refrigerant handling?

No. DIY® QuickConnect® line sets are factory-sealed and pre-charged.



Can each room be controlled independently?

Yes. Each air handler has its own remote, thermostat, and app control.



Is this system smart-home compatible?

Yes. Works with the MRCOOL® Smart HVAC Controller®, Amazon Alexa, and Google Assistant.



Is R-454B refrigerant future-ready?

Yes. R-454B is more efficient and environmentally responsible than older refrigerants.
