MRCOOL® 55K 6-Zone DIY® Mini Split System w/ 12k + 36K Air Handlers- two 16ft Pre- Charged Line Sets- DIYM255HPW02D00

Product Description

Model: DIYM255HPW02D00



The MRCOOL® DIYM255HPW02D00 is a powerful 55,000 BTU 6-zone DIY® mini split system engineered for homeowners who want full-home comfort, advanced smart control, and professional HVAC performance — without paying professional installation costs. Built around the MRCOOL® DIY® 5th Generation 6-Zone double-stack condenser, this system delivers dependable heating and cooling across multiple rooms using ultra-efficient inverter technology and next-generation R-454B refrigerant.

This bundle pairs a 12,000 BTU wall-mounted air handler for mid-size living spaces with a 36,000 BTU wall-mounted air handler designed for large open areas, basements, workshops, or great rooms. Installation is fast and frustration-free thanks to DIY® QuickConnect® pre-charged line sets, allowing homeowners to skip vacuum pumps, gauges, and refrigerant handling entirely. The included DIYPRO® cable removes the need for electrical conduit while protecting communications wiring from weather and pests.

Once installed, the system connects seamlessly to the MRCOOL® Smart HVAC Controller®, giving you full control from your smartphone. Adjust temperatures by zone, set schedules, monitor energy usage, or control your comfort hands-free using Amazon Alexa or Google Assistant. Features like Follow Me® temperature sensing, Gold Fin® corrosion protection, and industry-leading warranties make this system a long-term, high-value upgrade over traditional HVAC solutions.

This is a true DIY® multi-zone system built to outperform contractor-installed setups while keeping ownership costs low and efficiency high.





📦 WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY-MULTI6-55HP230D-O
  55,000 BTU 6-Zone 5th Gen DIY® Multi-Zone Double-Stack Condenser (230V)
• ✔ MRCOOL® DIY-12-HP-WMAH-230D25-O

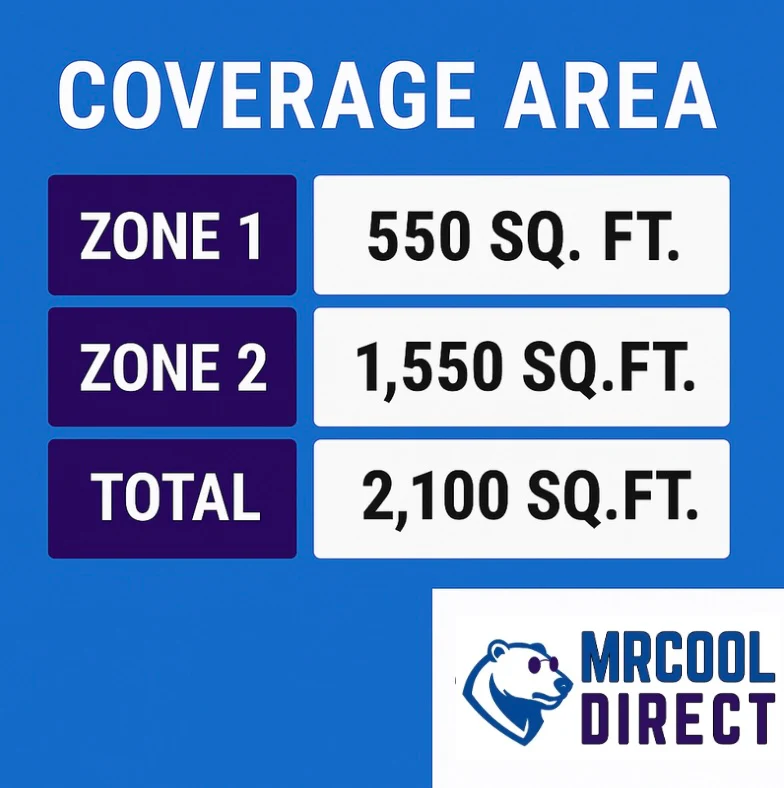

  12,000 BTU Wall-Mounted Air Handler (up to ~550 sq ft)
• ✔ MRCOOL® DIY-36-HP-WMAH-230D25-O
  36,000 BTU Wall-Mounted Air Handler (up to ~1,550 sq ft)
• ✔ MRCOOL® DIY16-1438-O
  16 ft DIY® QuickConnect® Line Set (1/4” x 3/8”)
• ✔ MRCOOL® DIY16-3858-O
  16 ft DIY® QuickConnect® Line Set (3/8” x 5/8”)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Wall mounting hardware & installation accessories

📌 Smart phone not included





⚙️ KEY SYSTEM SPECS & PERFORMANCE

• Total Capacity: 55,000 BTU
• Zones Supported: Up to 6
• SEER2: 22
• HSPF2-4: 10.6
• Refrigerant: R-454B
• Voltage: 208/230V (Single Phase)
• Max Breaker (Condenser): 45A
• Minimum Circuit Ampacity: 43A
• Inverter-Driven Compressor: Yes
• ENERGY STAR® Certified: Yes
• AHRI Certified: Yes



❓FREQUENTLY ASKED QUESTIONS

Q: Is this really a DIY® system?

Yes. The DIY® QuickConnect® line sets are factory-charged, so no vacuuming, refrigerant gauges, or HVAC license is required.



Q: Can I add more zones later?

Yes. This condenser supports up to six indoor units total, allowing future expansion.



Q: Does it support smart home control?

Absolutely. It works with the MRCOOL® Smart HVAC Controller®, Amazon Alexa, and Google Assistant.



Q: What warranty comes with this system?

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Eligible for the MRCOOL® Care kit program
