MRCOOL® 55K 5th Gen 6-Zone DIY® Mini Split System with (9k + 36K) Air Handlers with (25ft + 25ft) Pre- Charged R-454B Line Sets, (230V)-DIYM255HPW01D07

Product Description

Model: DIYM255HPW01D07

The MRCOOL® DIYM255HPW01D07 is a premium 55,000 BTU 6-zone DIY® mini split system engineered for homeowners who want full-home comfort, smart control, and professional-grade performance — without paying for professional installation. Built around the powerful MRCOOL® DIY® 5th Generation 6-Zone condenser, this system efficiently heats and cools up to six separate areas using advanced inverter technology and environmentally friendly R-454B refrigerant.

This bundle combines the DIY-MULTI6-55HP230D-O double-stack condenser with a 9,000 BTU wall-mounted air handler for smaller rooms and a 36,000 BTU wall-mounted air handler for large open spaces. Installation is made simple with DIY® QuickConnect® pre-charged line sets, allowing you to skip vacuum pumps, gauges, and refrigerant handling entirely. The included DIYPRO® cable eliminates the need for conduit while adding extra protection against weather and pests.

Once installed, you’re in full control using the MRCOOL® Smart HVAC Controller®. Adjust temperatures, set schedules, and monitor energy use directly from your smartphone, or go hands-free with Amazon Alexa and Google Assistant. Features like Follow Me® temperature sensing, Gold Fin® corrosion protection, and industry-leading warranties make this system a long-term investment in comfort, efficiency, and peace of mind.

This is a true DIY® multi-zone solution designed to outperform traditional HVAC systems while keeping installation costs low and efficiency high.



📦 WHAT’S INCLUDED IN THIS BUNDLE

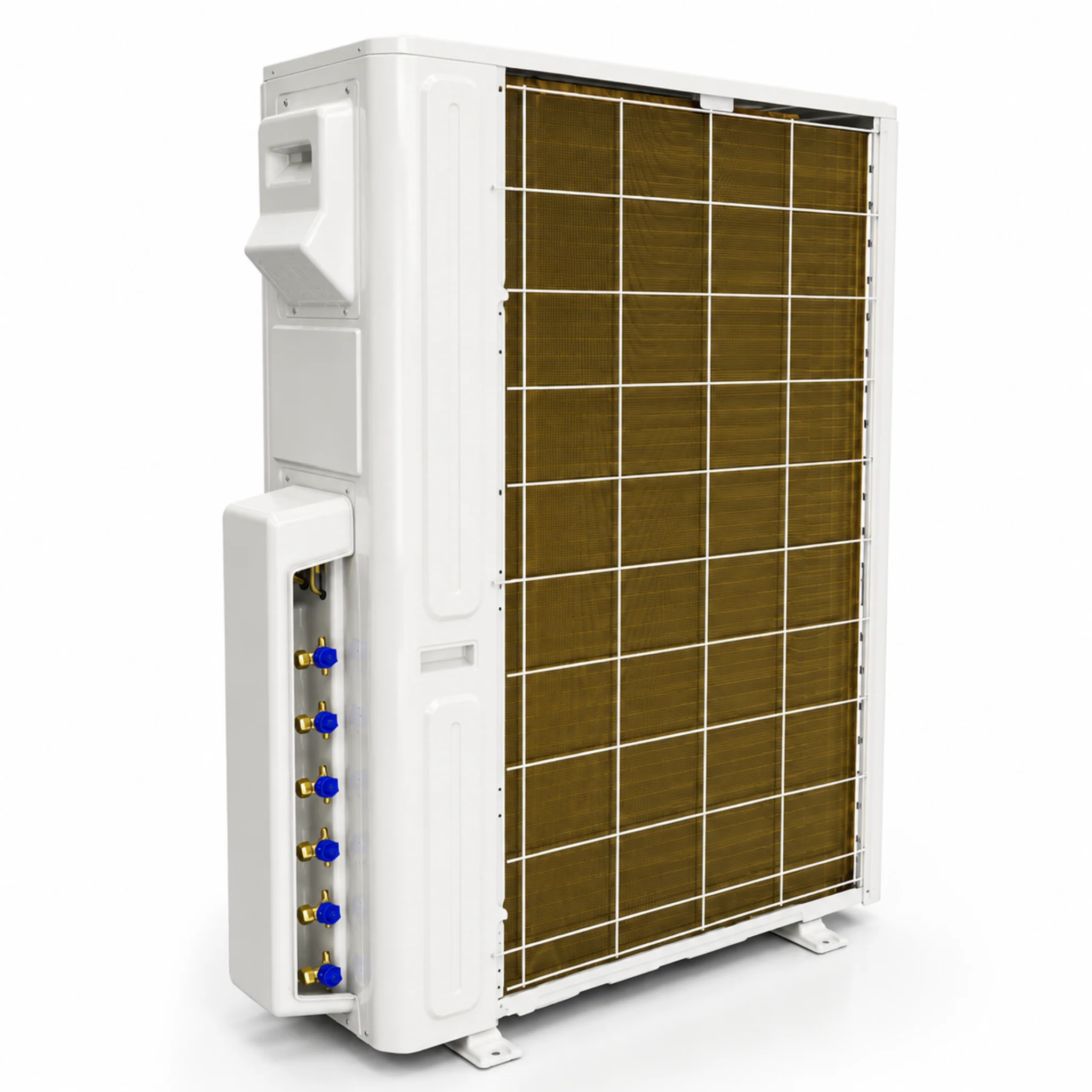

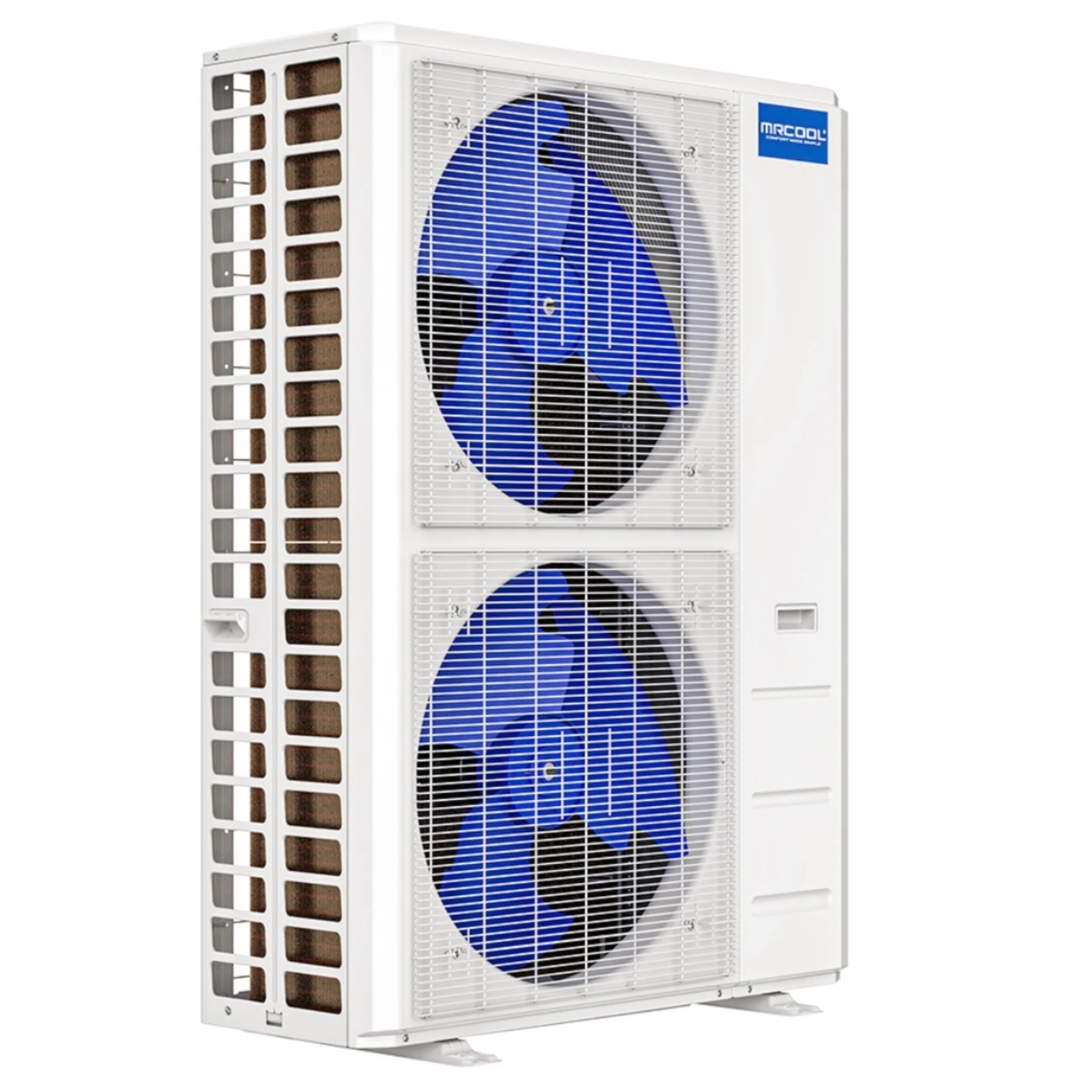

• ✔ MRCOOL® DIY-MULTI6-55HP230D-O
  55,000 BTU 6-Zone 5th Gen DIY® Multi-Zone Condenser (230V)

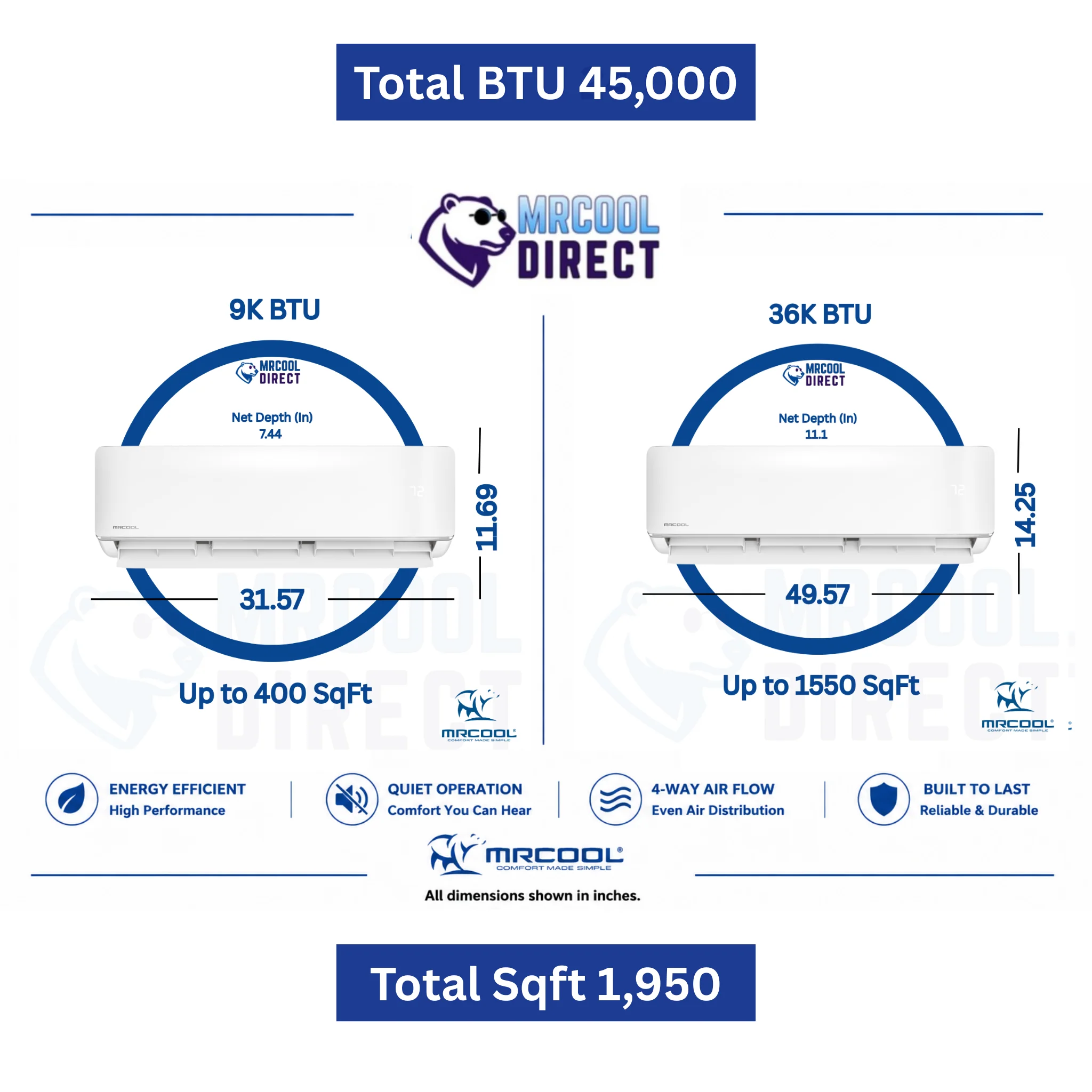

• ✔ MRCOOL® DIY-09-HP-WMAH-230D25-O
  9,000 BTU Wall-Mounted Air Handler (up to ~400 sq ft)
• ✔ MRCOOL® DIY-36-HP-WMAH-230D25-O
  36,000 BTU Wall-Mounted Air Handler (up to ~1,550 sq ft)
• ✔ MRCOOL® DIY25-1438-O
  25 ft DIY® QuickConnect® Line Set (1/4” x 3/8”)
• ✔ MRCOOL® DIY25-3858-O
  25 ft DIY® QuickConnect® Line Set (3/8” x 5/8”)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each air handler
• ✔ Wall mounting hardware & installation accessories

📌 Smart phone not included



⚙️ KEY SYSTEM SPECS & PERFORMANCE

• Total Capacity: 55,000 BTU
• Zones Supported: Up to 6

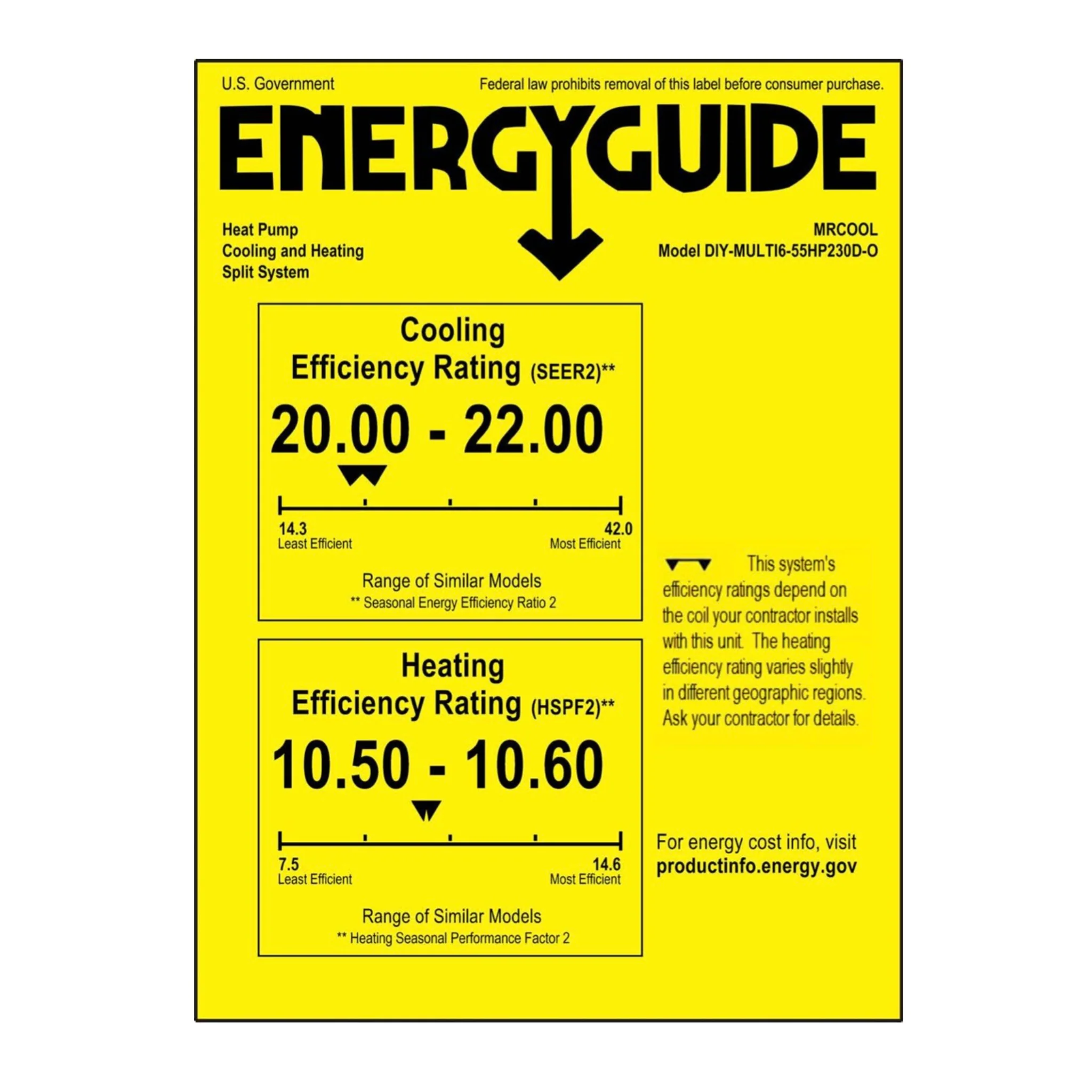

• SEER2: 22
• HSPF2-4: 10.6
• Refrigerant: R-454B
• Voltage: 208/230V (Single Phase)
• Max Breaker: 45A
• Minimum Circuit Ampacity: 43A
• Inverter Driven Compressor: Yes
• ENERGY STAR® Certified: Yes

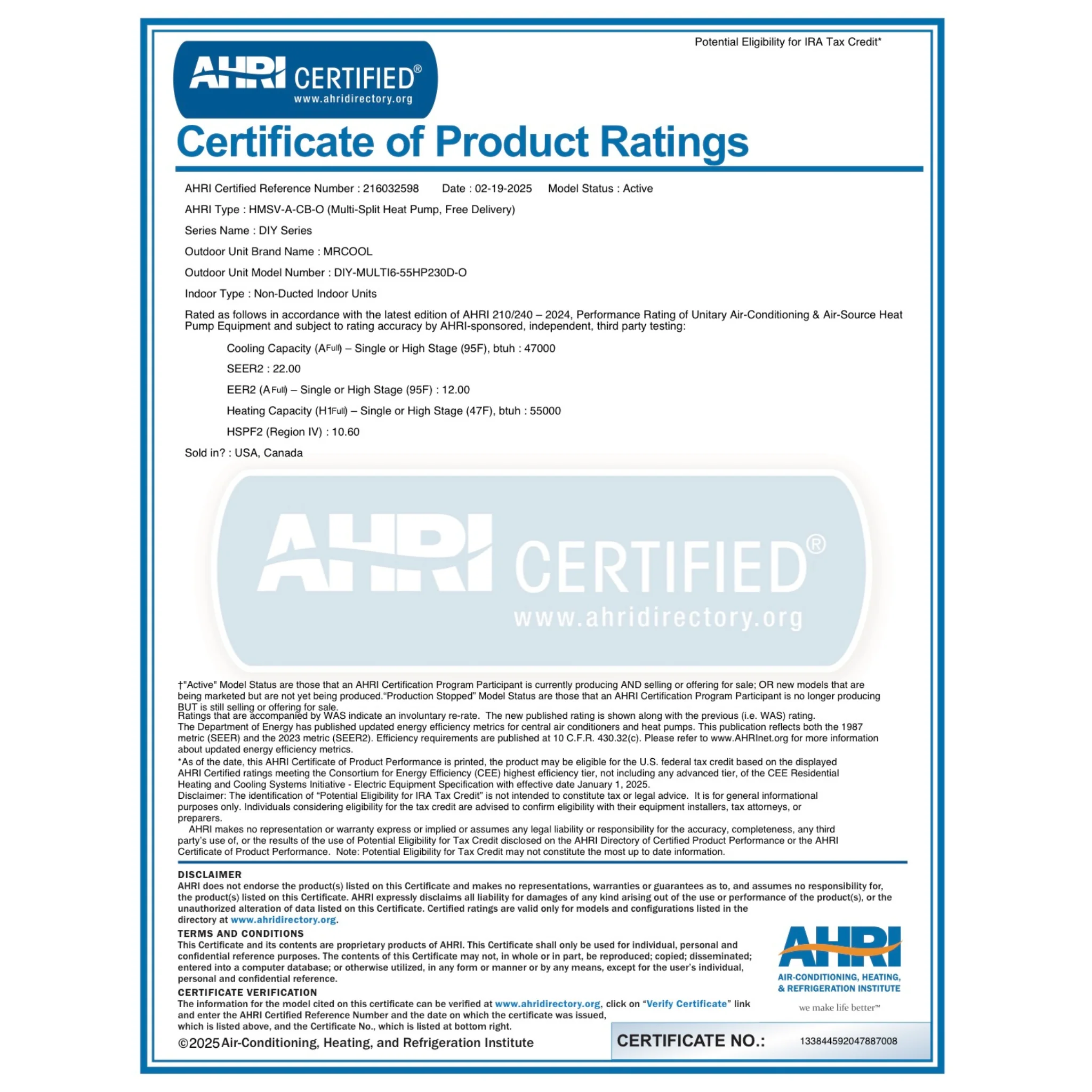

• AHRI Certified: Yes



❓FREQUENTLY ASKED QUESTIONS

Q: Is this a true DIY® system?

Yes. The DIY® QuickConnect® line sets are factory-charged, so no HVAC tools or refrigerant handling are required.



Q: Can I add more indoor units later?

Yes. This condenser supports up to 6 zones total, allowing future expansion.



Q: Does it work with smart home systems?

Yes. It integrates with the MRCOOL® Smart HVAC Controller®, Amazon Alexa, and Google Assistant.



Q: What warranty does this system include?

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Eligible for the MRCOOL® Care Kit program
