MRCOOL® 48K 5th Gen 6-Zone DIY® Multi-Zone Mini Split Bundle (9K + 36K) Air Handlers, (16ft + 16ft) Pre-Charged R-454B Line Sets-(230V), DIYM248HPW02D00

Product Description

Model:DIYM248HPW02D00



The MRCOOL DIYM248HPW02D00 is a high-performance DIY dual-zone configuration built using MRCOOL’s most powerful condenser — the 48K 6-Zone Double-Stack system. It combines a 9,000 BTU wall unit for a smaller room and a 36,000 BTU wall unit for a large, open space.

This setup delivers premium comfort for:

✔ Small quiet spaces — 9K unit

• Bedrooms
• Home offices
• Kids’ rooms
• Small apartments

✔ Large, high-demand areas — 36K unit

• Big living rooms
• Open concept homes
• Workshops
• Finished basements
• Large retail or commercial spaces

And even after powering both zones, you still have four unused ports on the 48K condenser for future expansion.



COMPLETE COMPONENT BREAKDOWN

48K 6-Zone Condenser (Double Stack)

Model: DIY-MULTI6-48HP230D-O

• Cooling: 43,000 BTU
• Heating: 48,000 BTU
• SEER2: 21.8
• HSPF2-4: 10
• Voltage: 208/230V
• Breaker Requirements:

• Max Fuse Breaker: 45A
• Min Circuit Ampacity: 40A
• Refrigerant: Pre-charged R-454B
• SmartHVAC app (iOS, Android, Alexa, Google)
• 6 total zones (4 ports unused with this bundle)
• Gold Fin® anti-corrosion coil
• Energy Star® Certified



9K Wall Air Handler — DIY-09-HP-WMAH-230D25-O

• Ideal for 350–400 sq ft
• Whisper-quiet operation
• Dry mode + Follow Me®
• 5-speed fan
• SmartHVAC WiFi



36K Wall Air Handler — DIY-36-HP-WMAH-230D25-O

• Ideal for 1,200–1,550 sq ft
• High-capacity airflow
• Strong heating output
• Perfect for big open rooms
• SmartHVAC app & voice control



Included Line Sets (16 ft Each)

✔ DIY16-1438-O — 16ft 1/4 × 3/8

✔ DIY16-3858-O — 16ft 3/8 × 5/8

Both include:

• Full R-454B charge
• Leak-proof quick-connect fittings
• UV/weather-resistant insulation
• Heavy-duty protective jacket



Coverage Summary

• Zone 1 (9K): 350–400 sq ft
• Zone 2 (36K): 1,200–1,500 sq ft
• Total system potential: Up to ~2,000 sq ft (plus 4 unused ports)

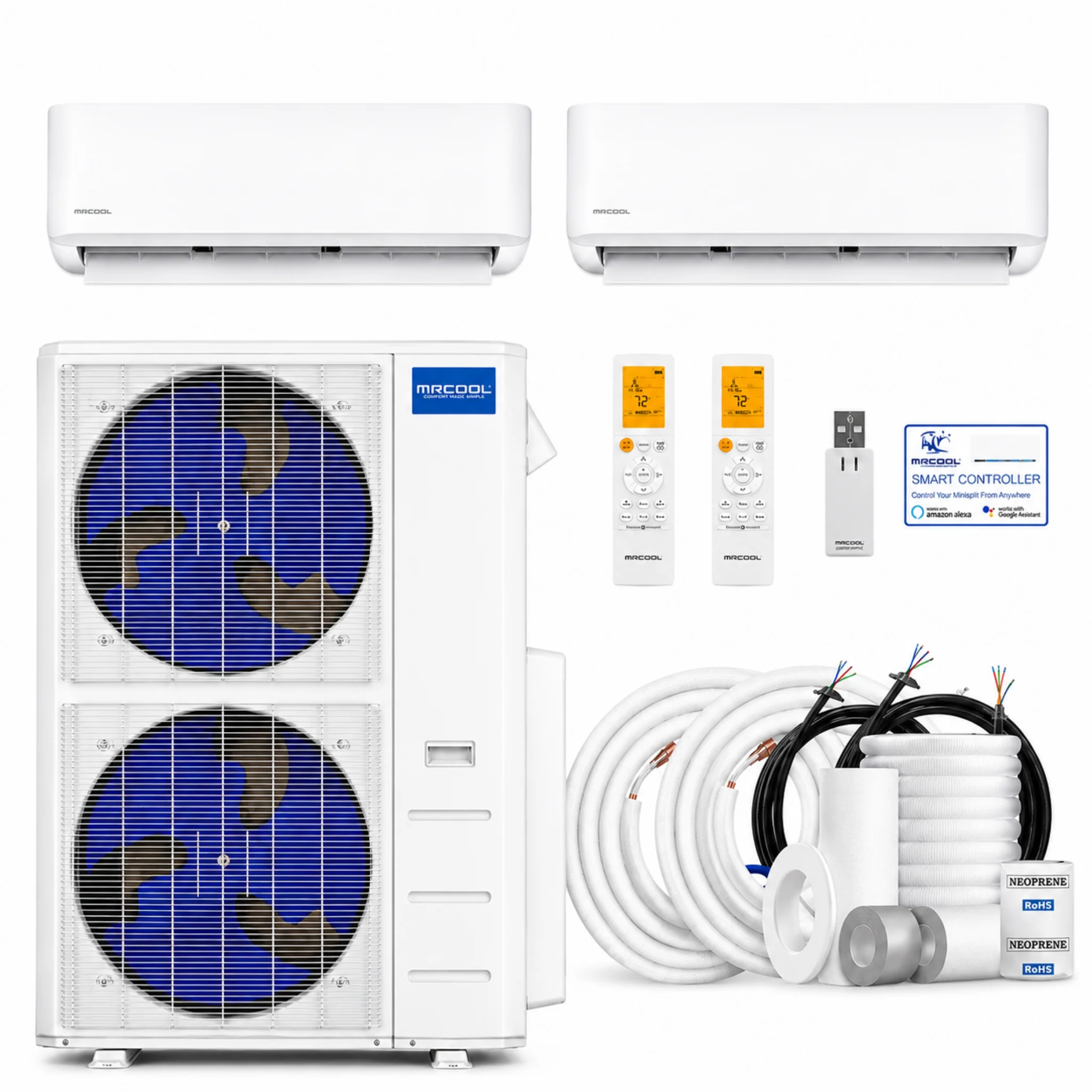

📦 WHAT’S INCLUDED

• (1) 48K 6-zone DIY condenser
• (1) 9K wall air handler
• (1) 36K wall air handler
• (1) 16ft 1/4 × 3/8 line set
• (1) 16ft 3/8 × 5/8 line set
• Remotes
• DIYPro® cables
• Full installation kits

FREQUENTLY ASKED QUESTIONS

Is this system truly DIY?

Yes — no vacuum pump, no refrigerant handling, and no HVAC license required.

Will 36K heat a large living room?

Absolutely — it covers up to 1,550 sq ft with strong heating.

Can I add more rooms later?

Yes — you still have 4 open ports.

Is 16ft long enough?

Perfect for same-wall or close-range installations. You can always order longer length line sets.





Why Buy From MRCOOL DIRECT?

When you order from MRCOOL Direct, you get:

• ✅ Authorized MRCOOL dealer – Your warranty is protected
• ✅ Factory-fresh units – No refurbished or mystery sources
• ✅ Fast U.S. shipping – Most in-stock items ship in 1–3 business days
• ✅ Financing options – Make high-efficiency comfort more affordable
• ✅ Real product support – Help with sizing, line set selection, and DIY questions
• ✅ No third-party marketplace middlemen – Just genuine MRCOOL systems from a trusted dealer
