MRCOOL® 48K 5th Gen 6-Zone DIY® Mini Split Bundle with (6K + 36K) Air Handlers with (16ft + 16ft) Pre-charged R-454B Line Sets- (230V), DIYM248HPW00D00

Product Description

Model: DIYM248HPW00D00

The Perfect Mixed-Room MRCOOL System — Small Bedroom + Huge Living Space Powered by a 48K 6-Zone Condenser

The MRCOOL DIYM248HPW00D00 bundle is engineered for homeowners who need precise zone control in both small and large rooms. This system combines a compact 6,000 BTU air handler—ideal for bedrooms, offices, or laundry rooms—with a powerful 36,000 BTU air handler that can condition large open areas like living rooms, workshops, basements, and great rooms.

Driven by the new 48,000 BTU 5th Generation DIY Multi-Zone Condenser, this package provides unmatched flexibility, premium heating and cooling performance, and true DIY installation with factory-charged R-454B Quick-Connect line sets.

This is one of the most advanced multi-zone heat pump systems MRCOOL has ever produced — and one of the few capable of managing up to 6 total zones, giving homeowners the freedom to expand later.

Why This Bundle Is a Perfect Match for Your Home



✔ Small-Zone Room Comfort (6K BTU)

Perfect for:

• Bedrooms
• Offices
• Nurseries
• Small dens
• Bathrooms or laundry rooms
• Garage work corners

This zone delivers silent operation, accurate humidity control, and pinpoint temperature management with Follow Me®.

✔ Large-Zone Heating/Cooling (36K BTU)

Engineered for big spaces, such as:

• Living rooms
• Great rooms
• Open kitchens
• Finished basements
• Workshops or home gyms
• ADU living areas

The 36K unit provides massive output, strong airflow, and ultra-efficient inverter operation.

✔ 48K 6-Zone Condenser = Future Expansion

This bundle uses MRCOOL’s largest DIY condenser:

• Supports 6 indoor units total
• Expand anytime with additional 6K, 9K, 12K, 18K, 24K, or 36K units
• Compatible with ceiling cassettes, ducted air handlers, and wall mounts

You’re only using 2 zones today, leaving 4 open ports for future rooms.

✔ True DIY Installation – No HVAC Tech Required

Thanks to the R-454B pre-charged line sets, no vacuum pump or gauges are needed.

Just torque the fittings, mount the units, and plug in the DIYPro® cable — job done.



Detailed Component Breakdown

 48K 6-Zone Condenser — DIY-MULTI6-48HP230D-O (Double Stack)

• Cooling: 43,000 BTU
• Heating: 48,000 BTU
• Efficiency: 21.8 SEER2 / HSPF2-4: 10
• Refrigerant: R-454B
• Supports: Up to 6 indoor units
• Electrical:

• Max Breaker: 45A
• Min Circuit Ampacity: 40A

Features include:

• SmartHVAC WiFi + Alexa/Google control
• Quiet DC inverter
• Gold Fin® corrosion-resistant outdoor coil
• ETL/UL/AHRI listed
• Extreme temperature performance



6K Wall Air Handler — DIY-06-HP-WMAH-230D25-O

• Up to 150–200 sq ft
• Whisper-quiet
• Auto mode, sleep mode, dry mode
• Follow Me® temperature tracking
• Reusable filter
• Energy-saving inverter controls



36K Wall Air Handler — DIY-36-HP-WMAH-230D25-O

• Covers up to ~1,550 sq ft
• High airflow for large open rooms
• 5 fan speeds
• SmartHVAC WiFi
• Low-noise inverter heat pump
• Follow Me®, Dry Mode, Auto Mode



Included Line Sets

DIY16-1438-O — 16 ft 1/4 × 3/8 (For 6K unit)

DIY16-3858-O — 16 ft 3/8 × 5/8 (For 36K unit)

Both include:

• R-454B pre-charge
• Quick-Connect fittings
• No refrigerant handling
• Heavy-insulated copper
• Zero-leak sealing system

 Coverage

• 6K Zone: Up to 200 sq ft
• 36K Zone: Up to 1,550 sq ft
• Total system potential: Up to 2,000 sq ft with expansion

This depends on your insulation, windows, ceiling height and state.

⭐ Key Performance Highlights

• Ultra-efficient DC inverter
• Rapid heating & cooling
• Whisper-quiet indoor operation
• Smart app + voice control
• Energy Star certified
• Future-proof with R-454B
• Eligible for the  MRCOOL® Care Program (see MRCOOL terms).

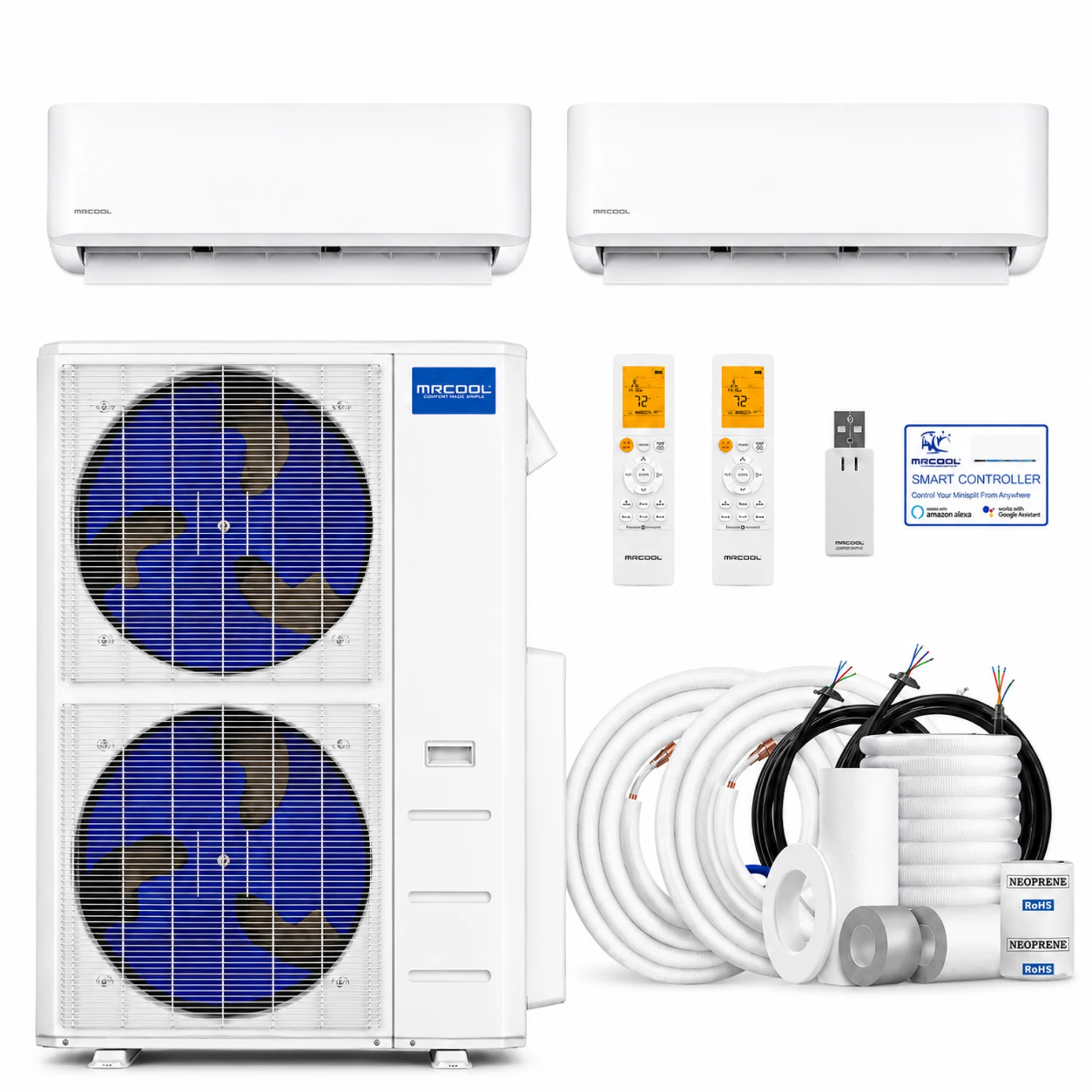

📦 What’s in the Box

• (1) 48K Multi-Zone Outdoor Condenser
• (1) 6K Wall Air Handler
• (1) 36K Wall Air Handler
• (1) 16ft Line Set – 1/4 × 3/8
• (1) 16ft Line Set – 3/8 × 5/8
• (2) Remotes
• DIYPro® cables
• Manuals + install materials



FAQ- Frequently Asked Questions

Is the system fully DIY?

Yes — all line sets are factory-charged and ready to connect.

Can I add more rooms later?

Yes — up to 4 additional indoor units.

Does it heat well in winter?

The inverter system delivers strong heat output even in cold-climate conditions.



Do both rooms have independent control?

100% independent thermostats + independent scheduling.
