MRCOOL® DIY® Hybrid 48,000 BTU Multi-Zone Heat Pump System (36K Ducted + 9K Ceiling Cassette) – 21.8 SEER2 – Model DIYM448HPH36C09

 Product Description

MRCOOL DIY Hybrid 48K multi-zone heat pump system with a 36K ducted air handler and 9K OuttaSight ceiling cassette. High-efficiency 21.8 SEER2 DIY installation with R-454B refrigerant and smart control.



LONG DESCRIPTION

The MRCOOL® DIY Hybrid 48,000 BTU Multi-Zone Heat Pump System is a powerful, flexible comfort solution designed for homeowners who want whole-home efficiency, zoning control, and true DIY installation—without sacrificing performance or appearance.



This professionally balanced hybrid system pairs the MRCOOL® DIY 5th Generation 48K Multi-Zone Condenser with a 36,000 BTU DIY Hybrid™ ducted air handler and a 9,000 BTU OuttaSight® one-way ceiling cassette, creating a clean, modern HVAC layout that blends central ducted comfort with targeted zone control.



The 36K ducted air handler delivers quiet, evenly distributed airflow through ductwork—ideal for large living spaces, basements, or whole floors—while the 9K ceiling cassette discreetly conditions bedrooms, offices, or bonus rooms without using wall space.



Thanks to MRCOOL® DIY QuickConnect® technology, installation is simplified using pre-charged R-454B refrigerant line sets, eliminating the need for vacuum pumps, gauges, or licensed refrigerant handling. The included DIYPRO® cable removes the need for electrical conduit, further reducing install time and cost.



Advanced DC inverter technology, Gold Fin® corrosion-resistant coils, and full MRCOOL® Smart HVAC Controller® integration ensure whisper-quiet operation, lower energy bills, and reliable year-round comfort—all controlled from your phone or smart home system.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 48,000 BTU total system capacity
• Hybrid system: ducted + ceiling cassette
• (1) 36K DIY Hybrid™ ducted air handler
• (1) 9K OuttaSight® one-way ceiling cassette
• 21.8 SEER2 high-efficiency rating
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• R-454B eco-friendly refrigerant
• DIYPRO® cable (no conduit required)
• Gold Fin® anti-corrosion protection
• Whisper-quiet operation
• MRCOOL® Smart HVAC Controller® App
• Alexa®, Google Home®, and smart home compatible
• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS & BREAKER INFO

Outdoor Condenser – DIY-MULTI6-48HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 40 Amps
• Maximum Breaker Size: 45 Amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

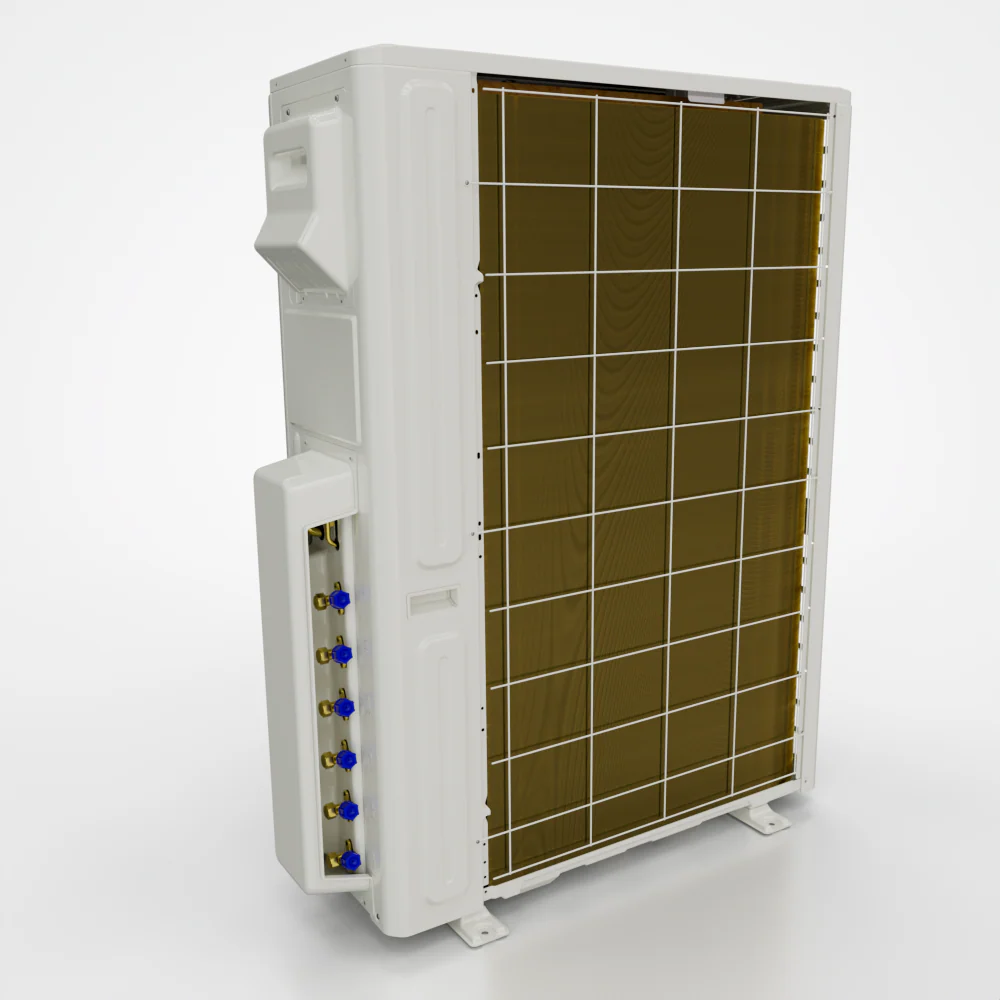

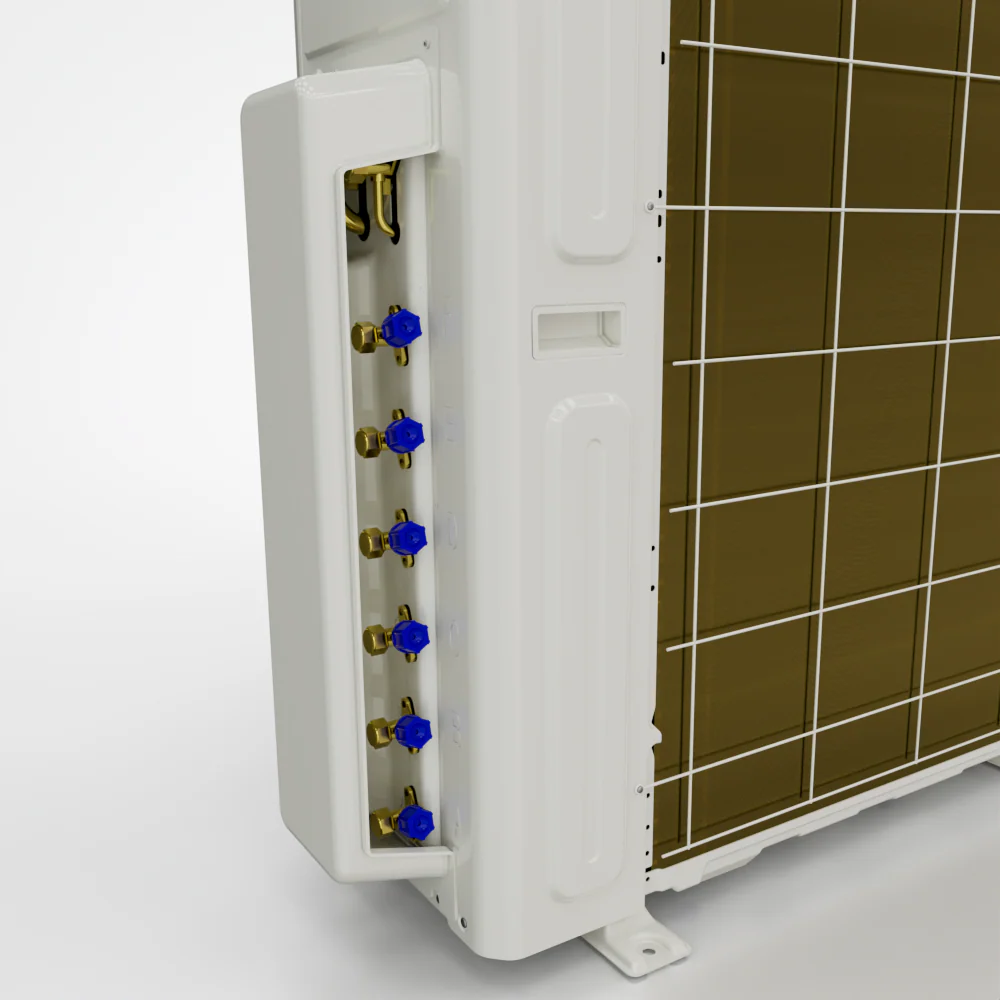

Outdoor Condenser

• Width: 37.48 in
• Height: 52.48 in
• Depth: 16.34 in
• Weight: ~224 lbs

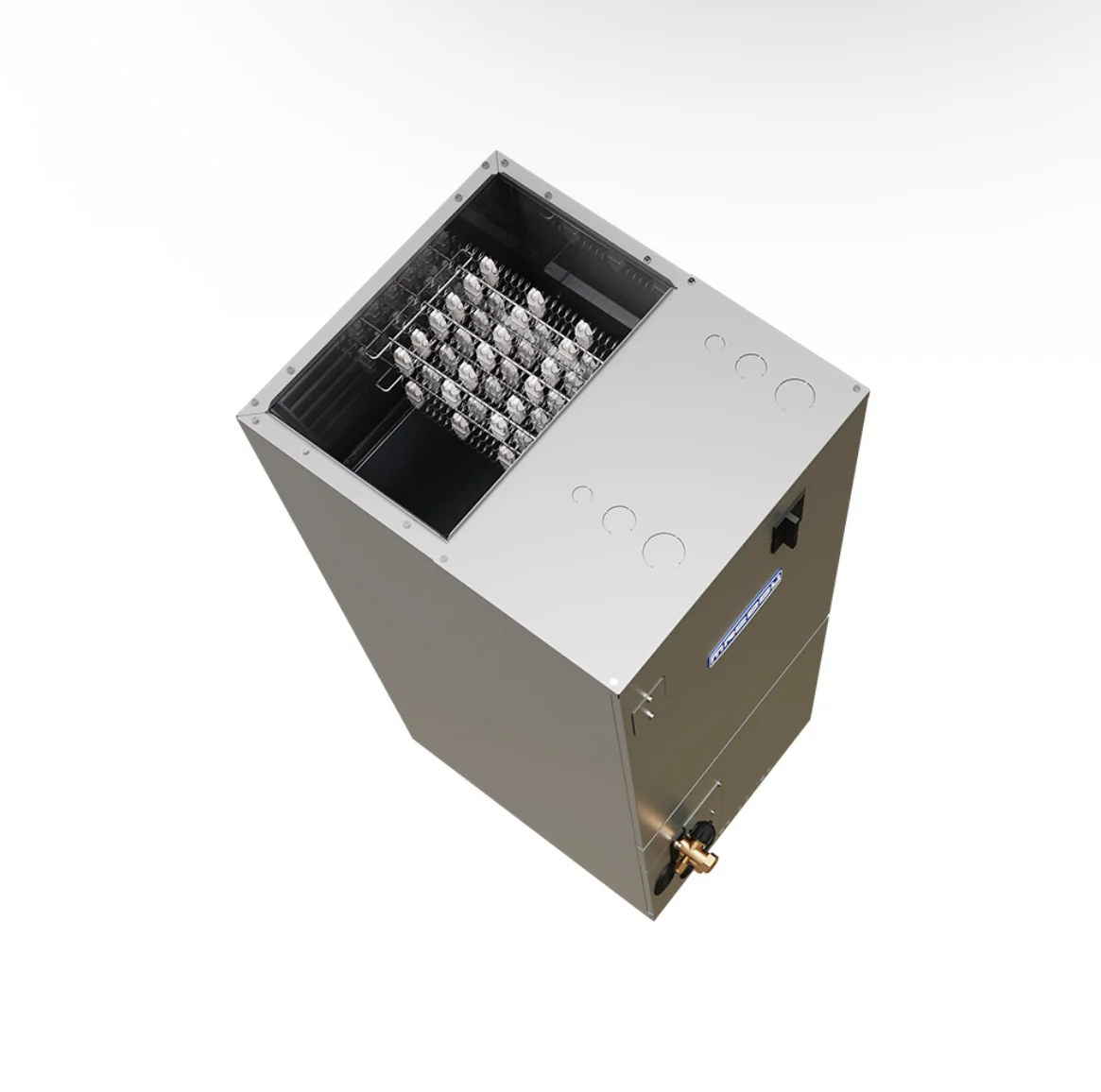

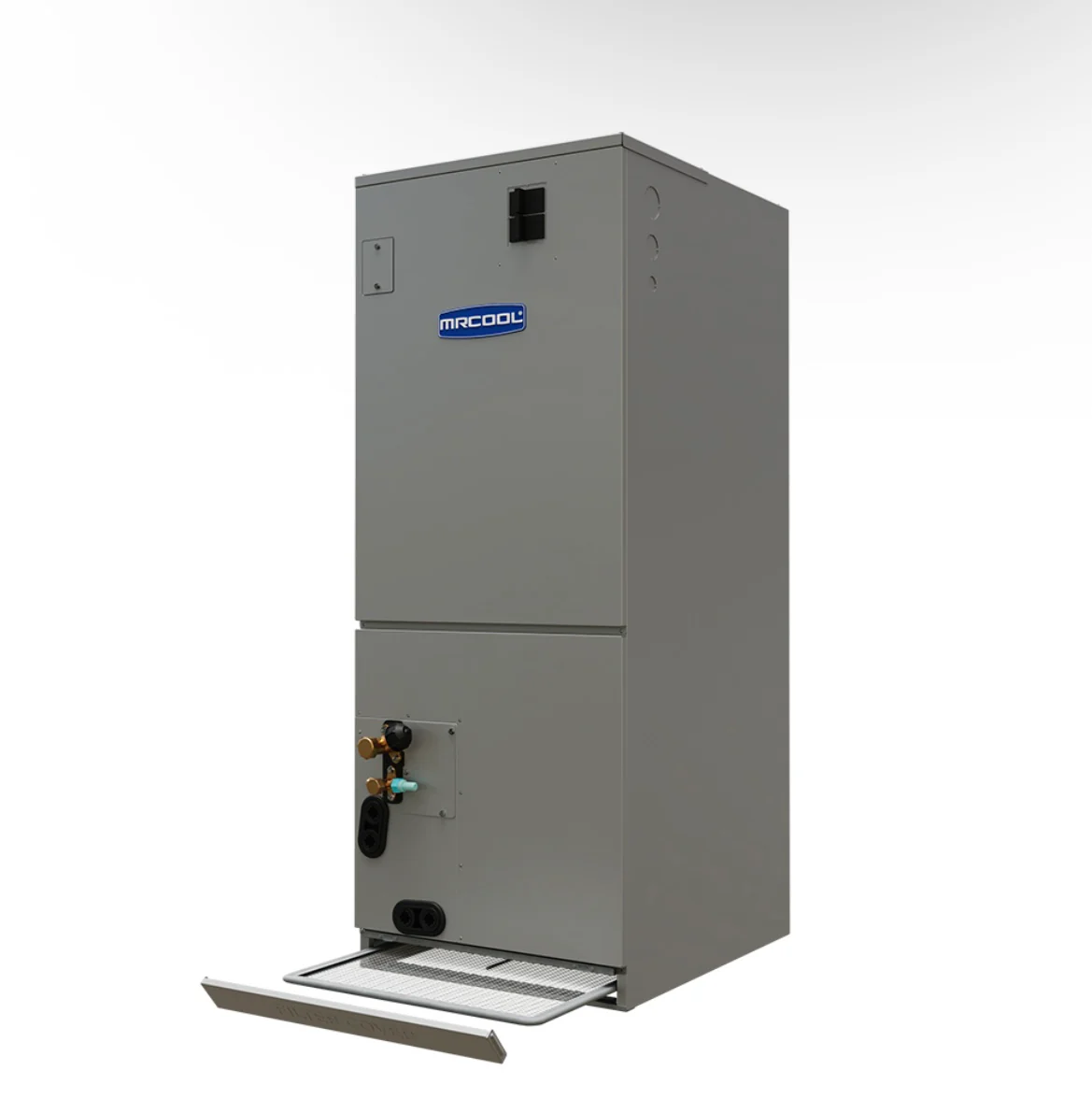

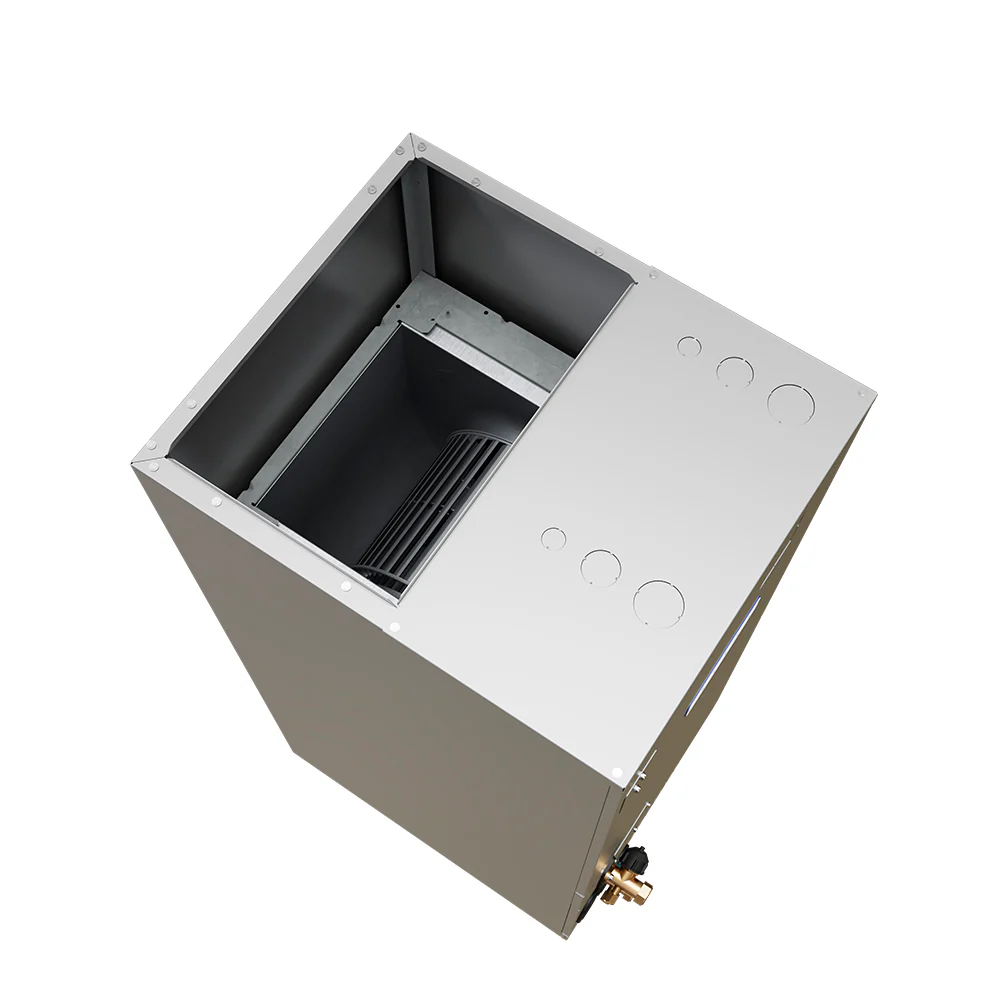

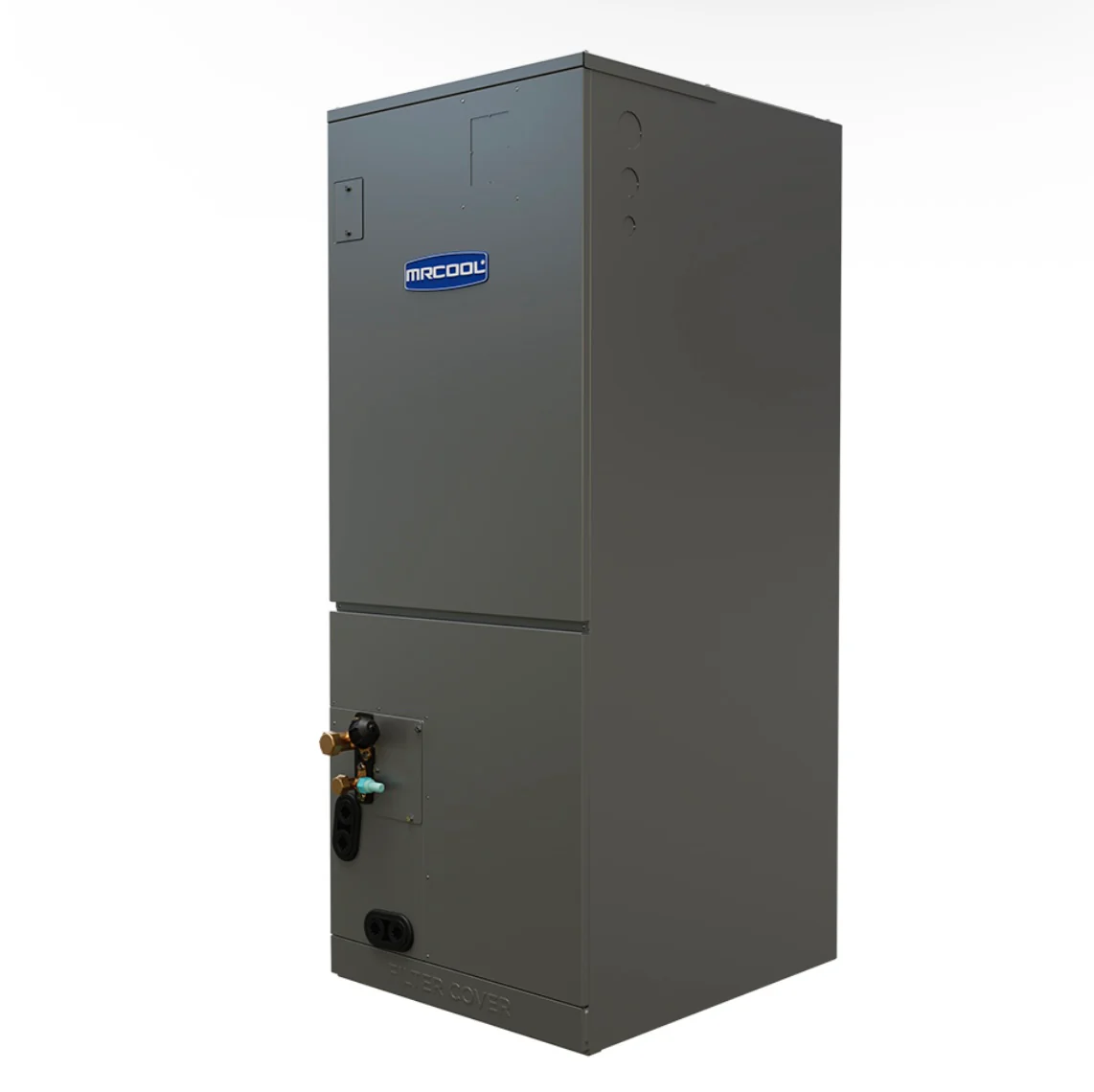

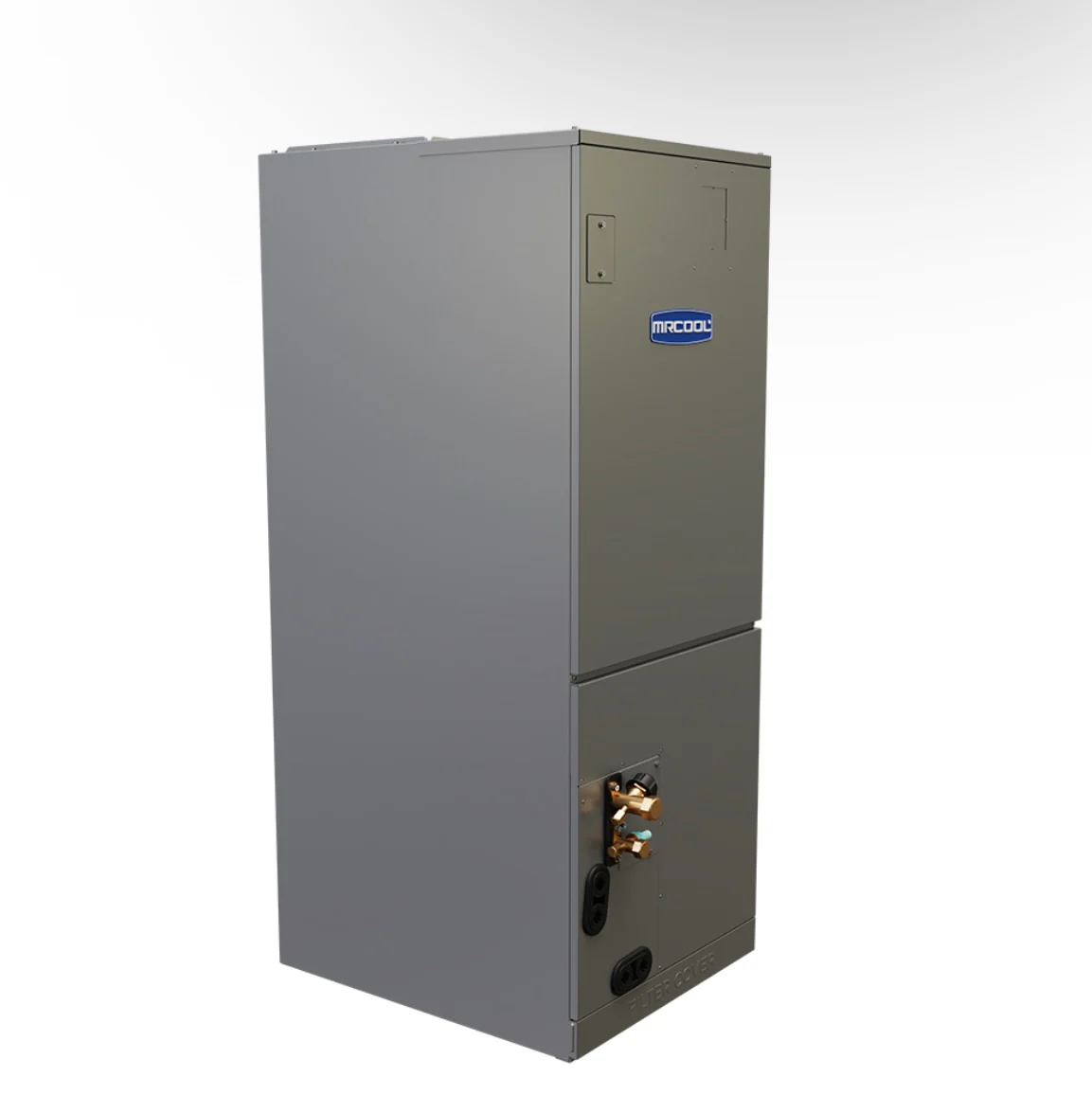

36K DIY Hybrid™ Ducted Air Handler

• Width: 21.02 in
• Height: 49.02 in
• Depth: 21.02 in
• Weight: ~128 lbs

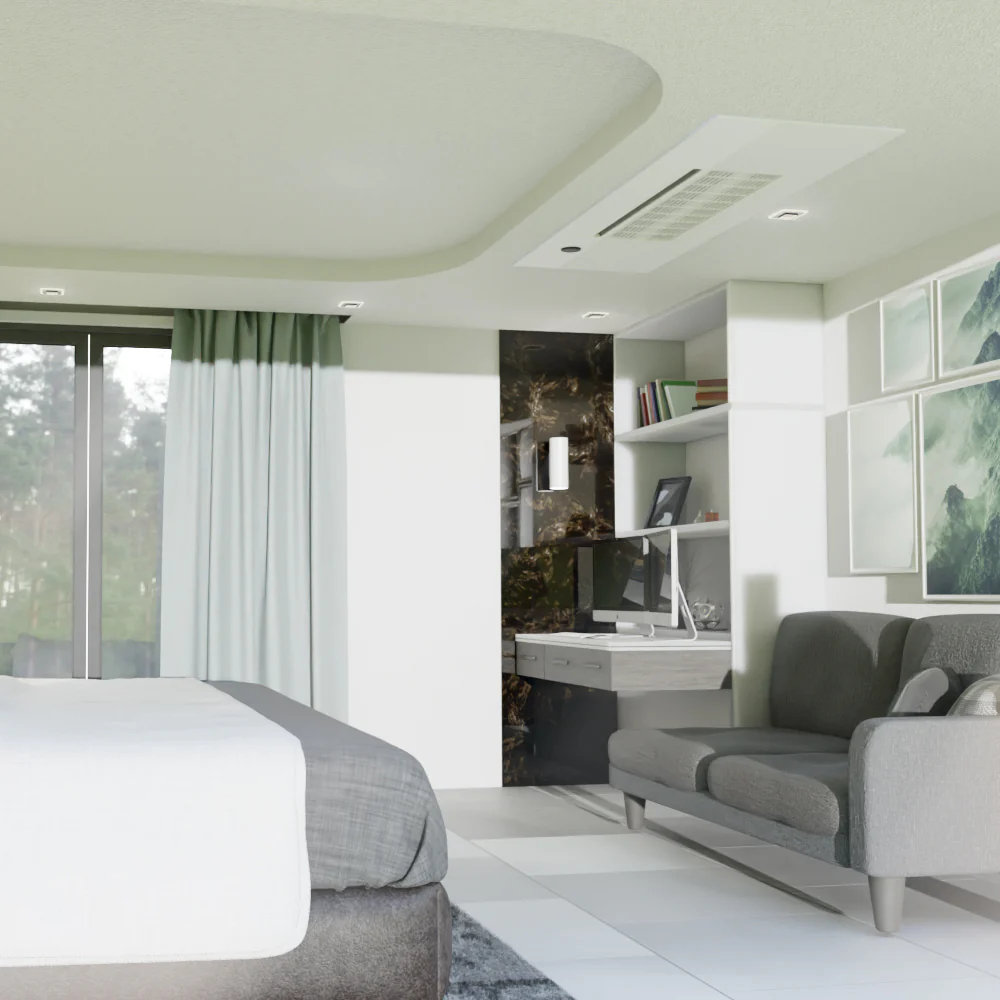

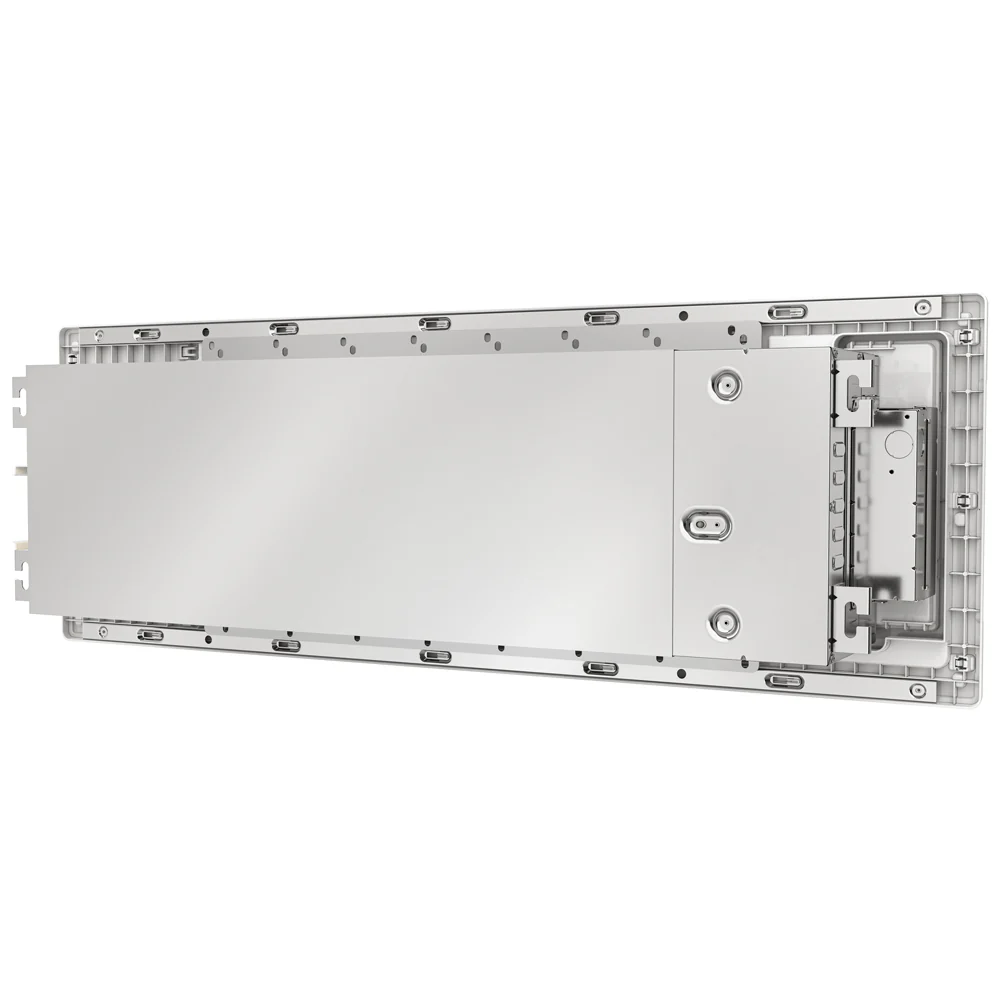

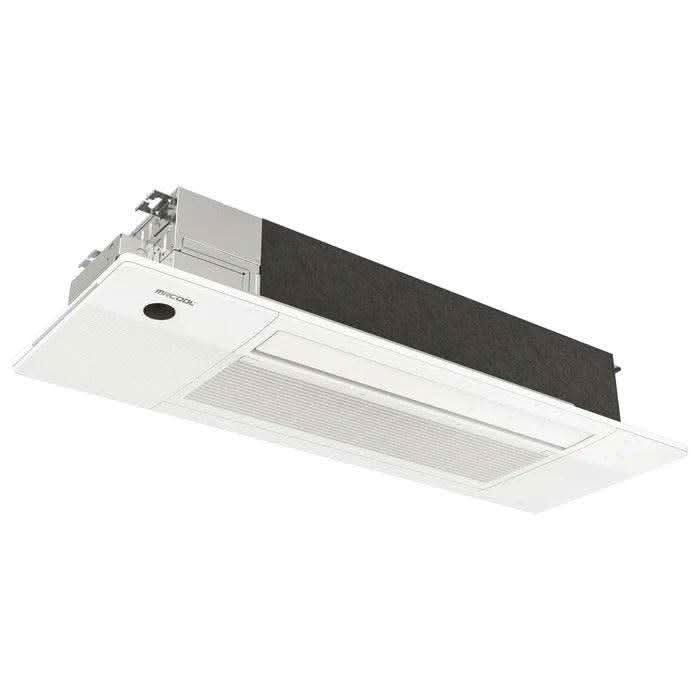

9K OuttaSight® Ceiling Cassette

• Width: 50.31 in
• Height: 8.98 in
• Depth: 13.19 in
• Weight: ~45 lbs



WHAT’S INCLUDED IN THIS BUNDLE

✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser

✔ MRCOOL® 36K DIY Hybrid™ Ducted Air Handler

✔ MRCOOL® 9K OuttaSight® One-Way Ceiling Cassette

✔ DIYPRO® communication cable

✔ Wireless remote control

✔ Smart HVAC app compatibility

✔Installation manuals & mounting hardware



Line sets Heat Kit sold separately to match installation layout.



Compatible Heat kits

MVPHK05

MVPHK08
MVPHK10
MVPHK15
MVPHK20



WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (With MRCOOL® Care Program registration)



FREQUENTLY ASKED QUESTIONS (FAQ)

Can I install this system myself?

Yes. This system is designed for true DIY installation with no HVAC license required.



Why choose a hybrid system?

Hybrid systems combine central ducted comfort with zoned efficiency for maximum flexibility.



Is this system energy efficient?

Yes. With a 21.8 SEER2 rating, it delivers significant energy savings.



Does it support smart home control?

Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
