MRCOOL® DIY® 5th Gen Multi-Zone 5-Zone 36,000 BTU 21.5 SEER2 (6K + 6k + 6k + 6k + 6k) + (5x 16ft) line sets, Ductless Mini-Split Heat Pump System – Model DIYM536HPW00D00

Product Description

The MRCOOL® DIYM536HPW00D00 is a high-efficiency, professionally balanced 5-zone ductless mini-split system designed for homeowners who want total room-by-room comfort, energy savings, and true DIY installation freedom—without paying contractor labor costs.



At the heart of this system is the MRCOOL® DIY® 5th Generation 36,000 BTU multi-zone condenser, paired with five perfectly matched 6,000 BTU wall-mounted indoor air handlers. This layout is ideal for bedrooms, offices, nurseries, small living areas, guest rooms, and bonus spaces, allowing precise temperature control in every zone.



Installation is simplified using MRCOOL® DIY® QuickConnect® technology. The included five 16-foot pre-charged QuickConnect® line sets arrive factory-sealed with R-454B refrigerant, eliminating the need for vacuum pumps, gauges, or licensed refrigerant handling. The included DIYPRO® communication cable removes the need for electrical conduit, reducing install time while improving long-term reliability.



Powered by DC inverter technology, protected with Gold Fin® corrosion-resistant coils, and fully integrated with the MRCOOL® Smart HVAC Controller® App, this system delivers whisper-quiet operation, lower monthly utility bills, and dependable year-round heating and cooling—all with true DIY convenience.



KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 36,000 BTU total system capacity
• 5 independently controlled comfort zones
• (5) 6,000 BTU wall-mounted indoor air handlers
• Up to 21.5 SEER2 energy efficiency
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged R-454B line sets
• 16-ft line sets included for standard layouts
• DIYPRO® cable (no conduit required)

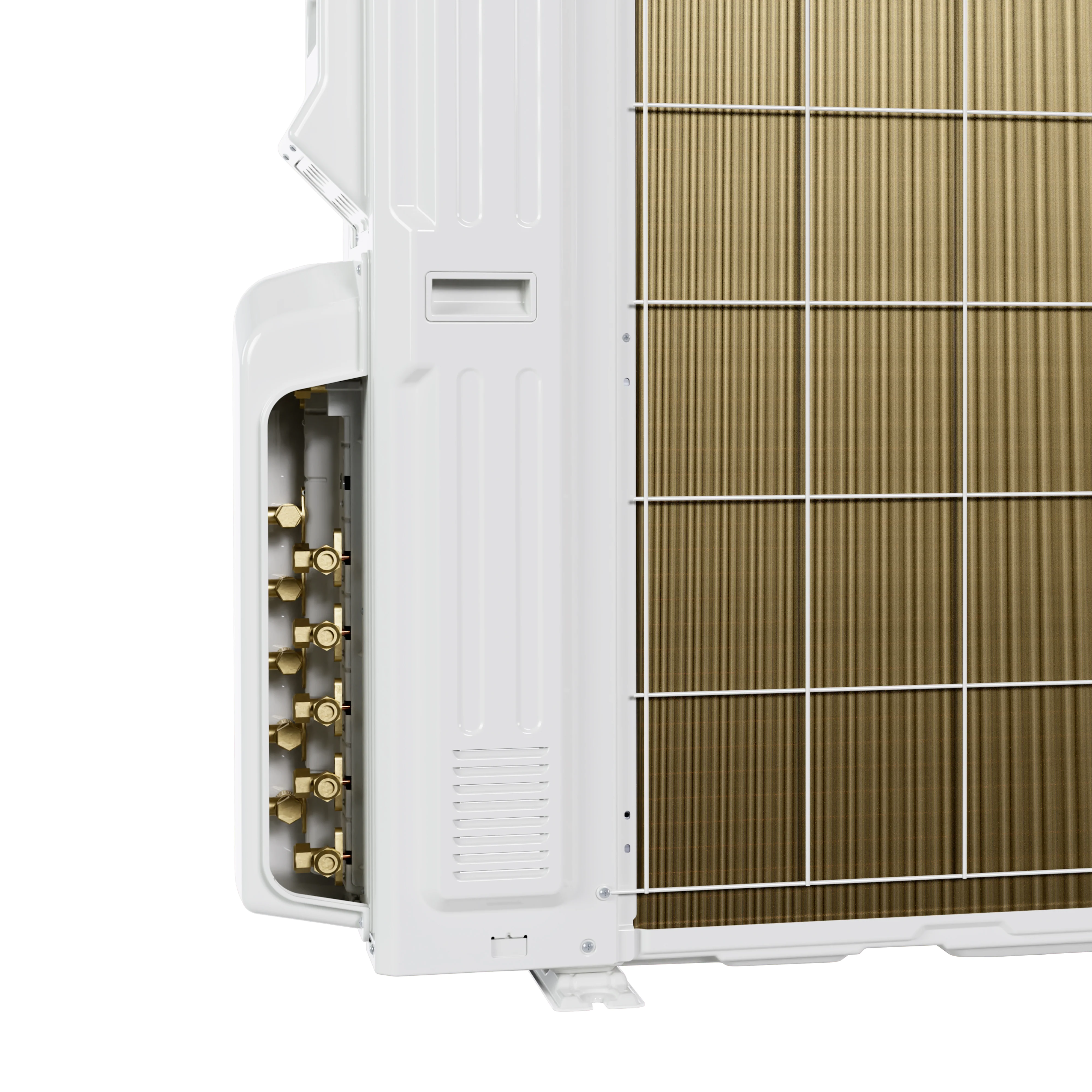

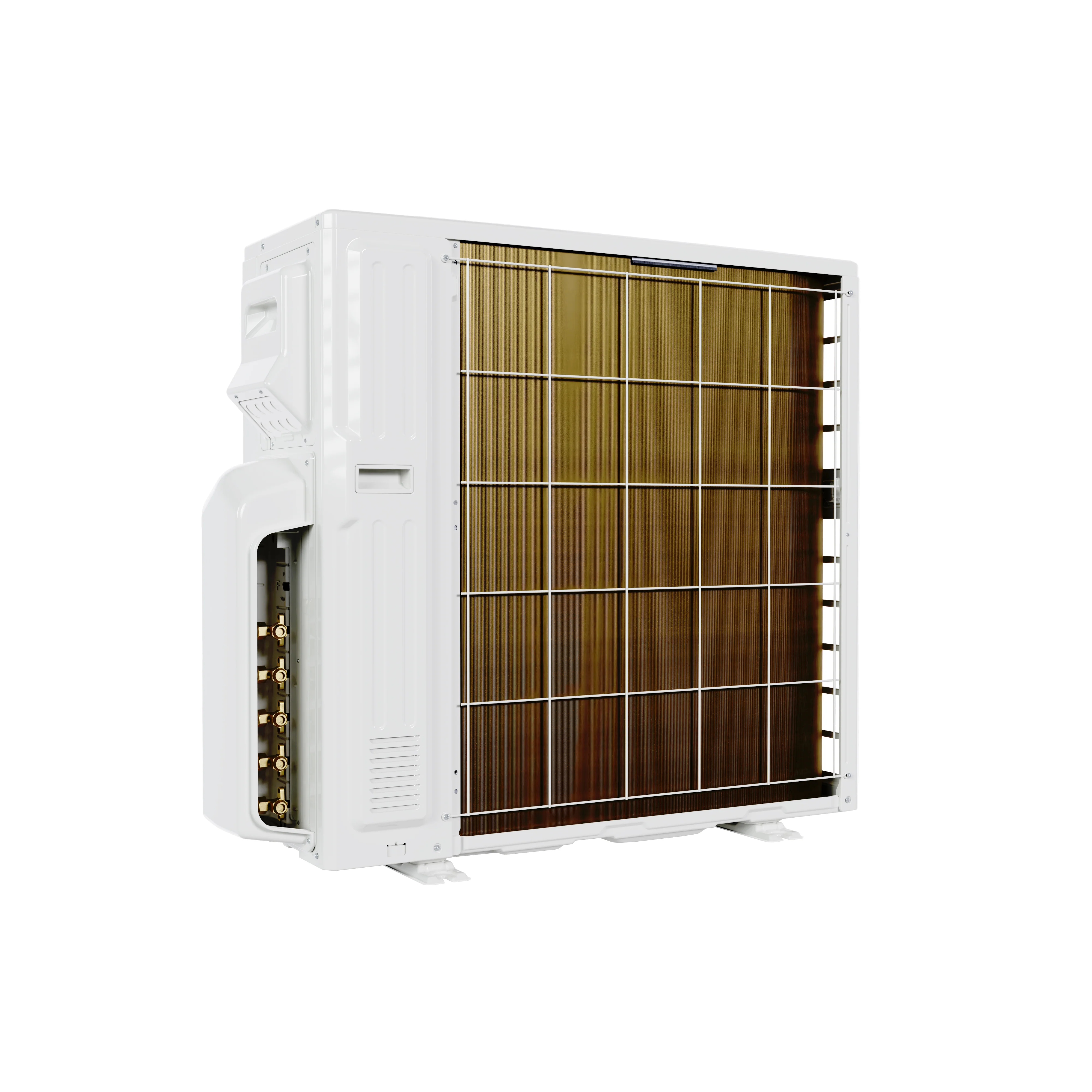

• Gold Fin® anti-corrosion protection
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Amazon Alexa® & Google Home® compatible
• ENERGY STAR® & AHRI certified





ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

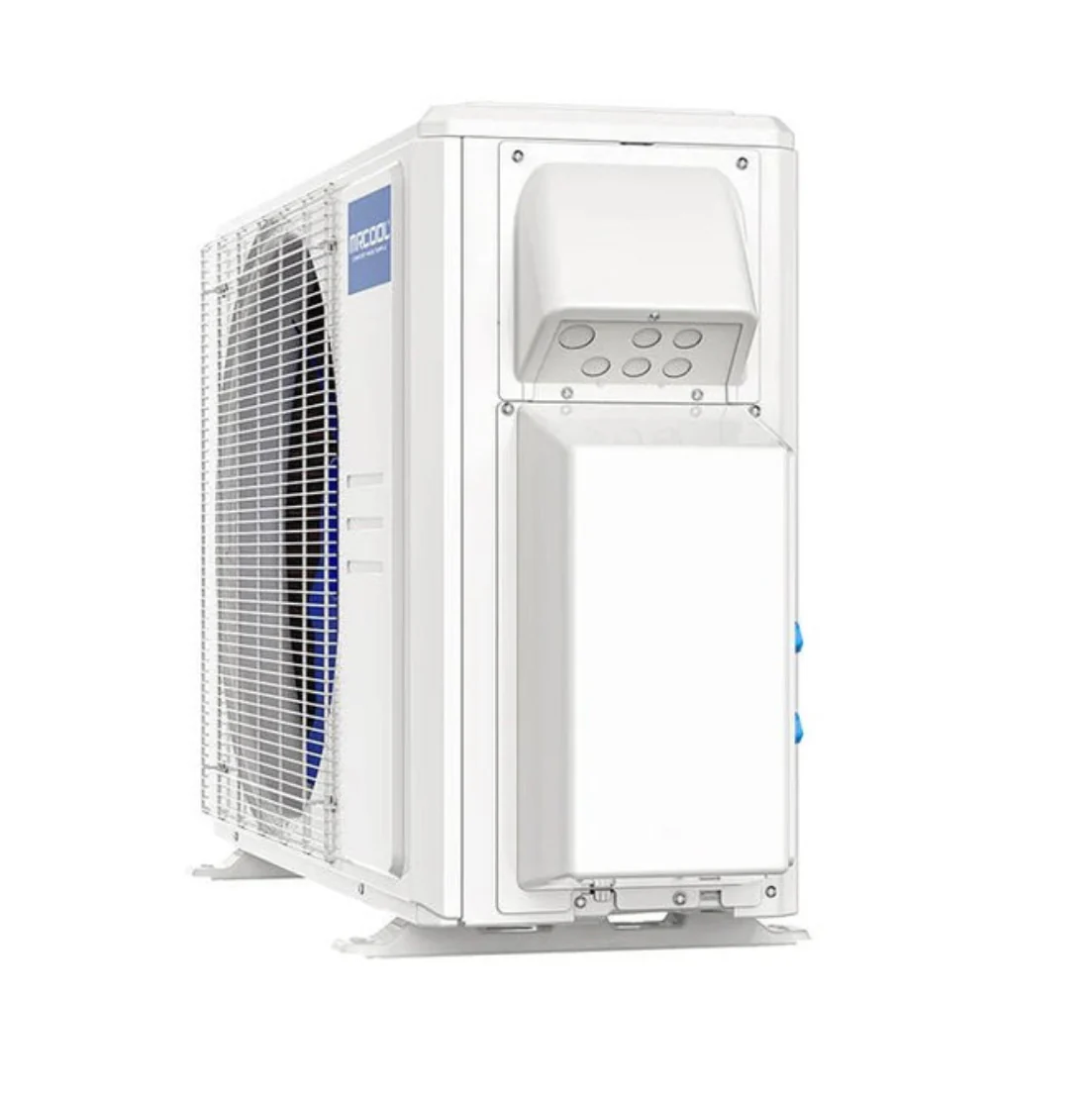

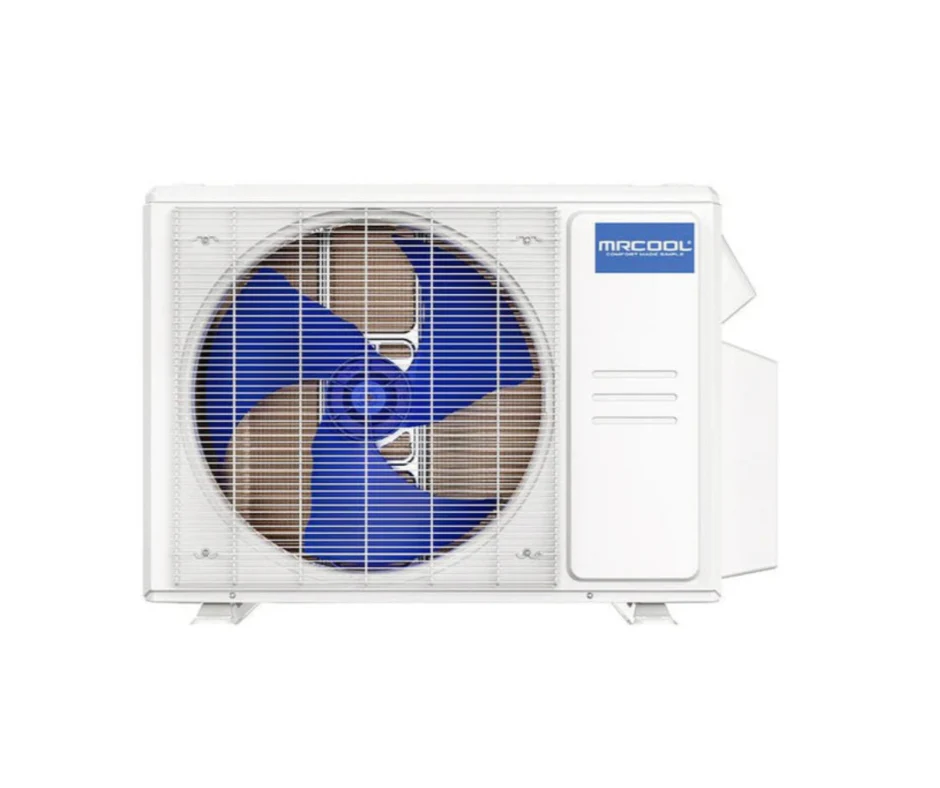

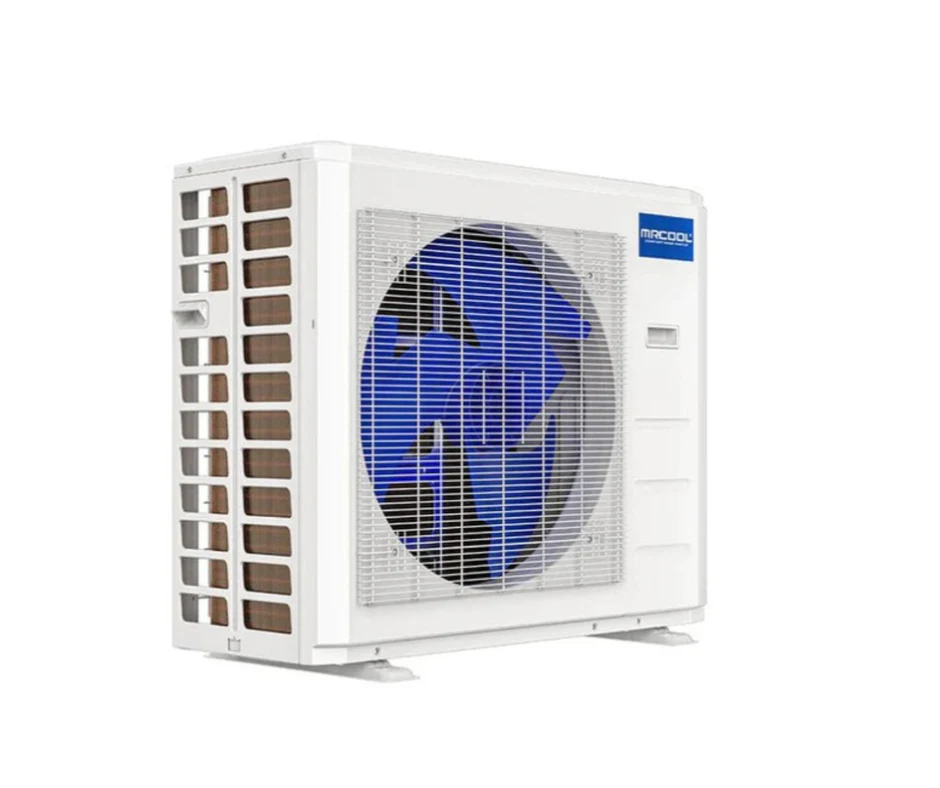

Outdoor Condenser — DIY-MULTI5-36HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): ~30 Amps
• Maximum Breaker Size: ~40 Amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

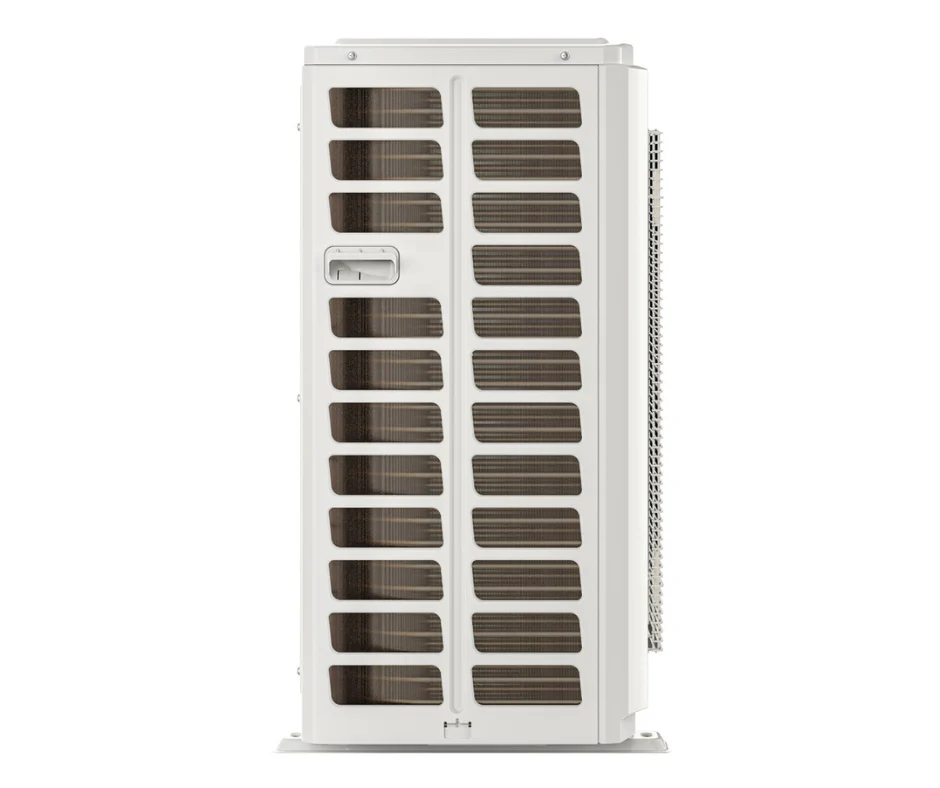

Outdoor Condenser

• Width: ~37.48 in
• Height: ~52.48 in
• Depth: ~16.34 in
• Weight: ~205 lbs

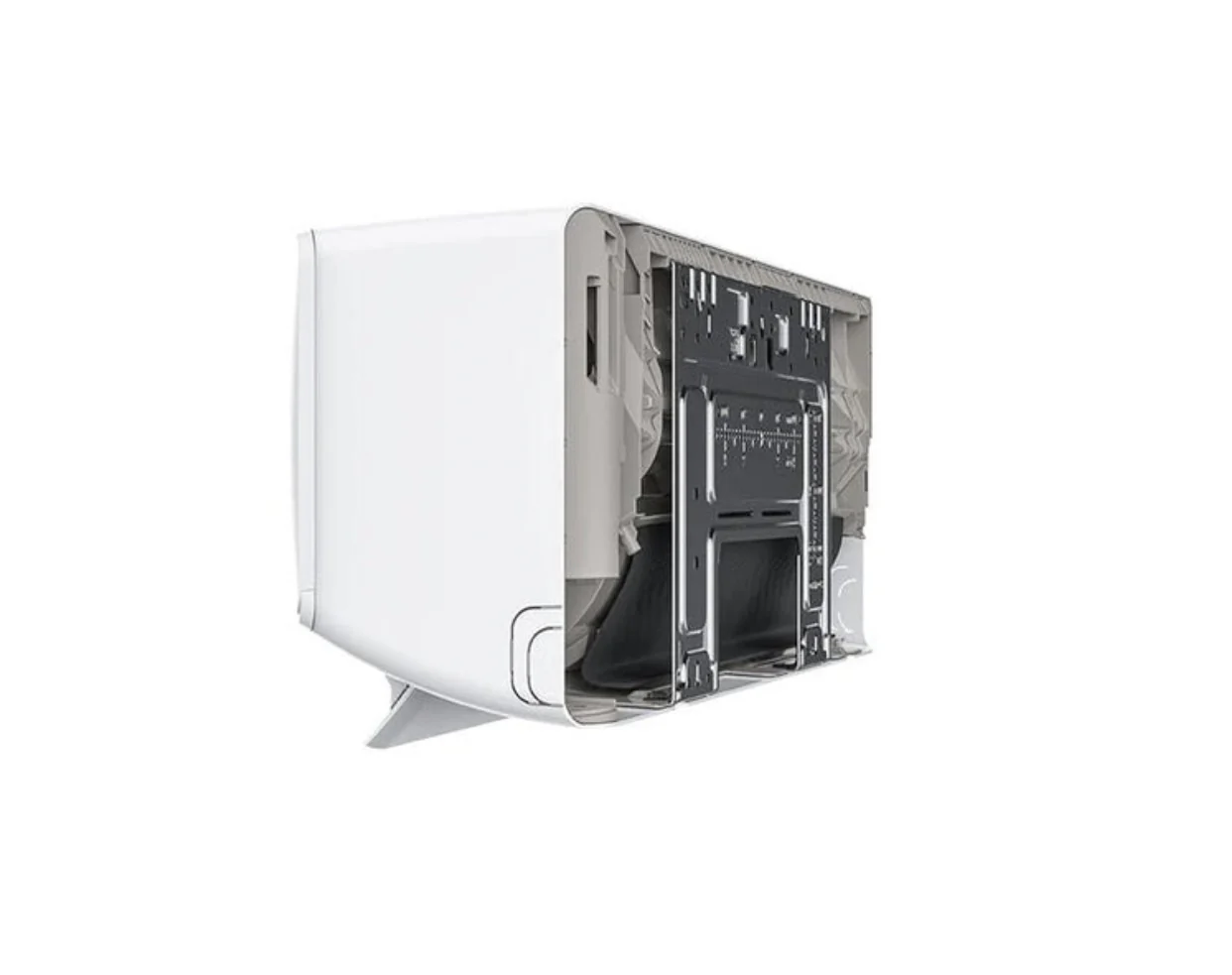

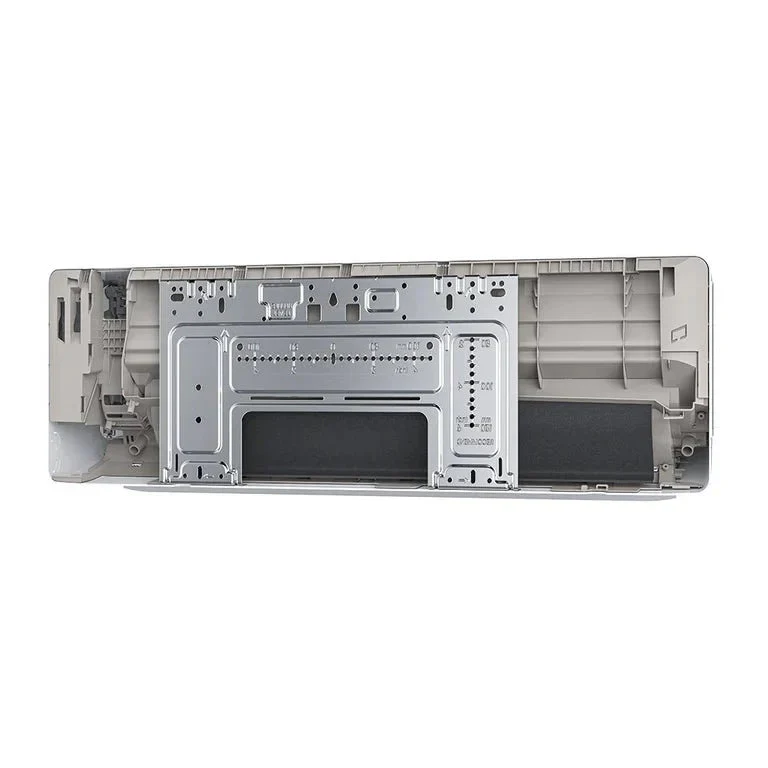

6K Indoor Air Handlers (each)

• Width: ~31.57 in
• Height: ~11.69 in
• Depth: ~7.44 in
• Weight: ~24.5 lbs



WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Eligible for the MRCOOL® Care Kit Program

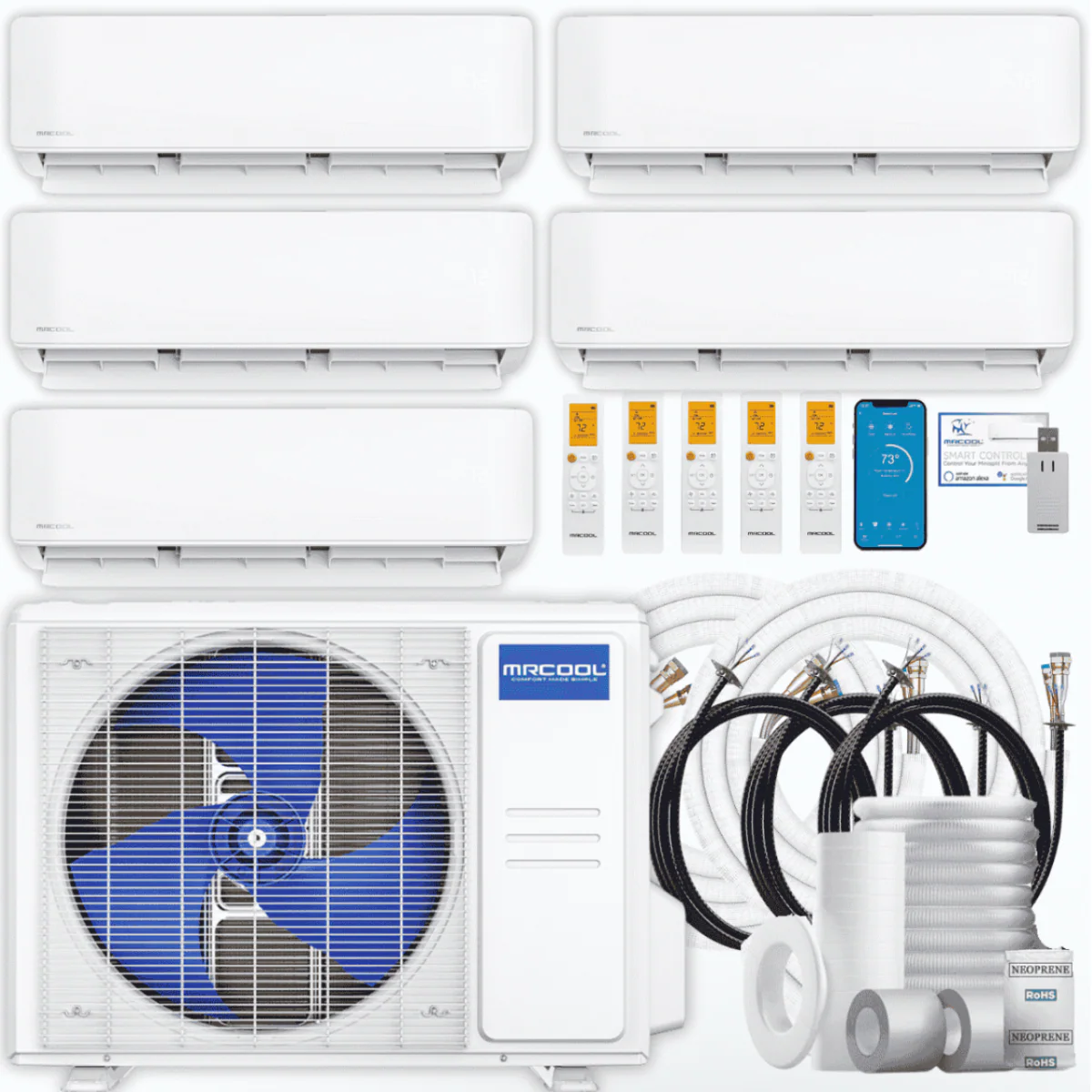

WHAT’S INCLUDED IN THIS COMPLETE BUNDLE

•  MRCOOL® DIY® 36,000 BTU Multi-Zone Outdoor Condenser
•  (5) 6,000 BTU Wall-Mounted Indoor Air Handlers
•  (5) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
•  DIYPRO® communication cable
•  Wireless remotes for each indoor unit
•  Mounting hardware & installation manuals

📱 Smartphone not included



FREQUENTLY ASKED QUESTIONS (FAQ)

Can each room be controlled independently?

Yes. Each of the five indoor units has its own thermostat and remote.



Is this system truly DIY?

Yes. No HVAC license, vacuum pump, or refrigerant handling required.



Are 16-ft line sets long enough?

They are ideal for standard installations. Longer line sets can be added if needed.



Does it support smart home integration?

Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart App.



Is this good for multiple bedrooms?

Absolutely. This bundle is ideal for homes with many small rooms.
