MRCOOL® Hyper Heat 2nd Gen 30K BTU 2.5 Ton 16.8 SEER2 Central Ducted Heat Pump Split System R-454B Refrigerant
Advanced Heating & Cooling with Smart Control and Eco-Friendly R-454B Refrigerant
Upgrade to the MRCOOL® Hyper Heat 2nd Gen 30K BTU 2.5 Ton Central Ducted Heat Pump Split System, designed for exceptional energy efficiency, year-round climate control, and smart home integration. With an impressive SEER2 rating of up to 16.8 and HSPF2-4 rating of 10, this system keeps your home comfortable in extreme temperatures—whether freezing winters or scorching summers.
Engineered with R-454B refrigerant, this next-generation system is more eco-friendly while maintaining high-efficiency heating and cooling. The system pairs seamlessly with the MRCOOL® VersaPro® 2.5 Ton Central Ducted Air Handler, ensuring even air distribution, flexible installation options, and remote control via the SmartHVAC app.
Key Features & Benefits
Efficient & Reliable Year-Round Performance
✔ 16.8 SEER2 & 10 HSPF2-4 for superior energy efficiency
✔ Works in extreme temperatures, ensuring optimal heating and cooling year-round

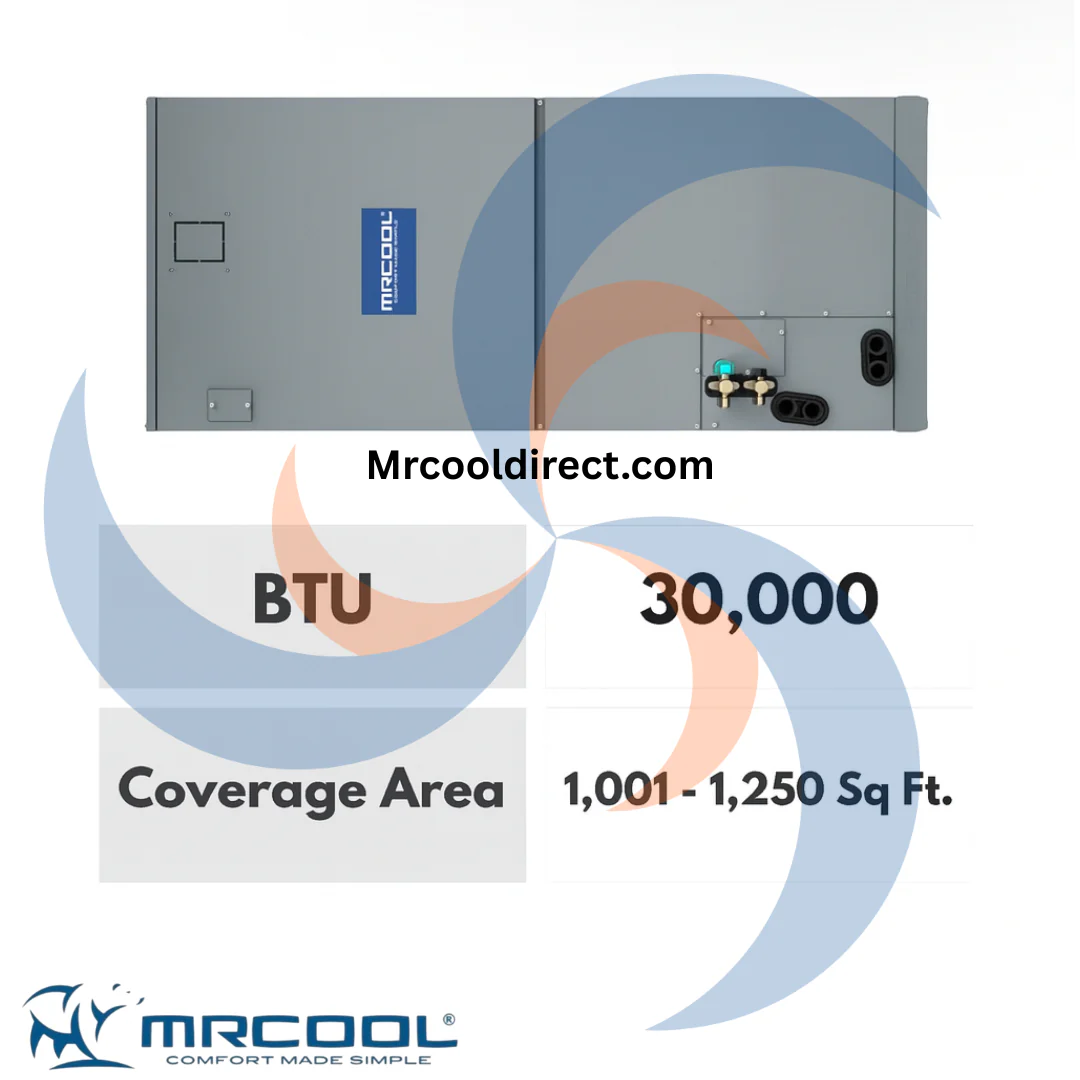

✔ Covers up to 1,250 sq. ft., ideal for upgrading outdated HVAC systems
Easy DIY Installation & Smart Control
✔ Compatible with No Vac® Quick Connect® Line Sets (pre-charged with R-454B for faster setup)(sold separately)
✔ MRCOOL® Smart Thermostat included for effortless temperature adjustments
✔ SmartHVAC App Integration – Control your system remotely from anywhere
✔ Alexa, Google Assistant & Siri compatibility for hands-free control
Eco-Friendly & Built to Last
✔ Uses R-454B refrigerant, a sustainable and low-GWP alternative
✔ Durable galvanized steel exterior for long-lasting protection against the elements
✔ Self-diagnostics panel for easy troubleshooting and maintenance
Customizable & Flexible Installation
✔ Supports upflow, downflow, horizontal left/right configurations for seamless integration into any space
✔ Optional heat kit compatibility for additional heating power in colder months
✔ Includes stub pipes and copper nuts for traditional flare nut configurations
Comprehensive Warranty for Peace of Mind
✔ 10-Year Warranty on compressor, parts, and labor (automatic labor warranty activation after 90 days of installation)
✔ Industry-leading reliability backed by MRCOOL’s expert support

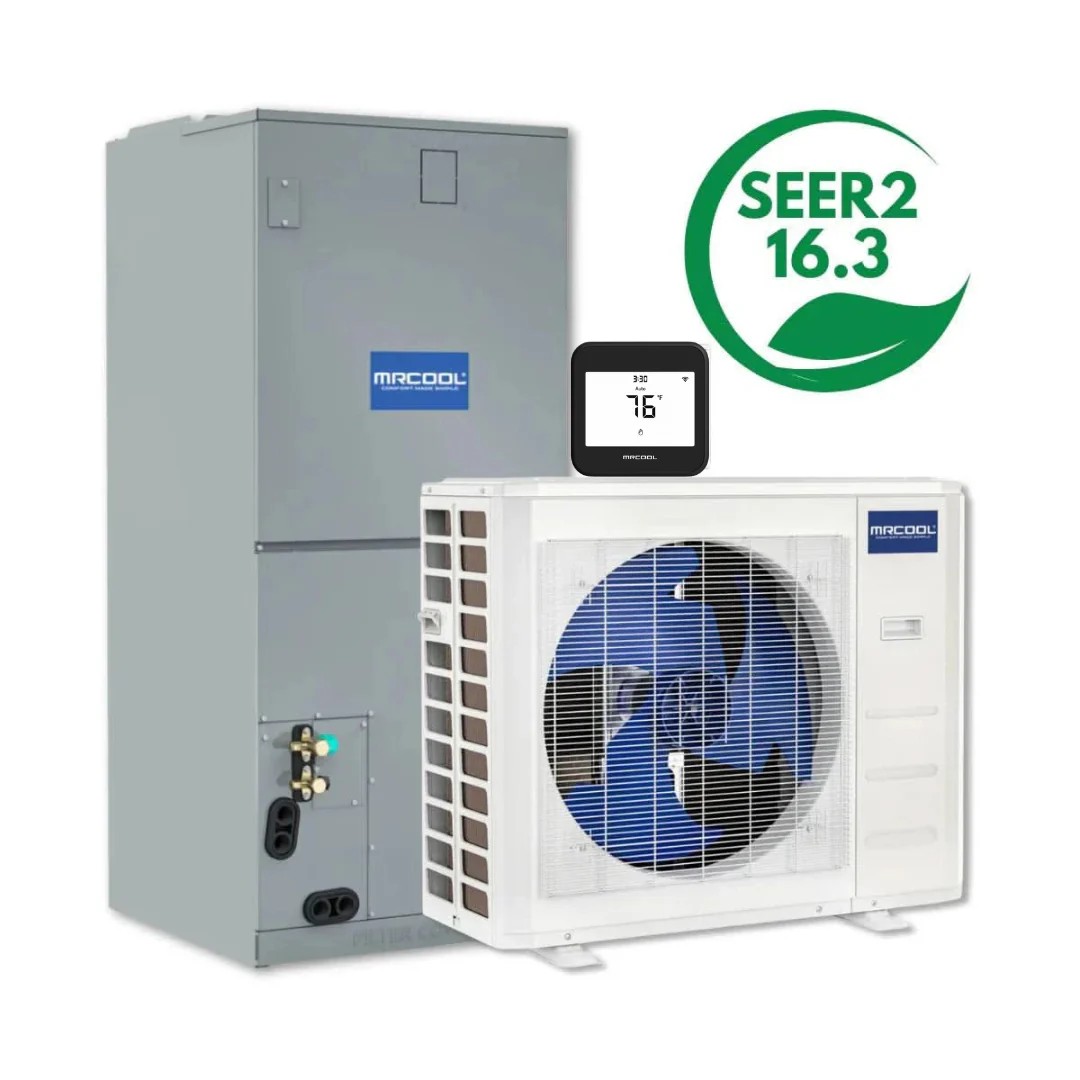

What's Included?

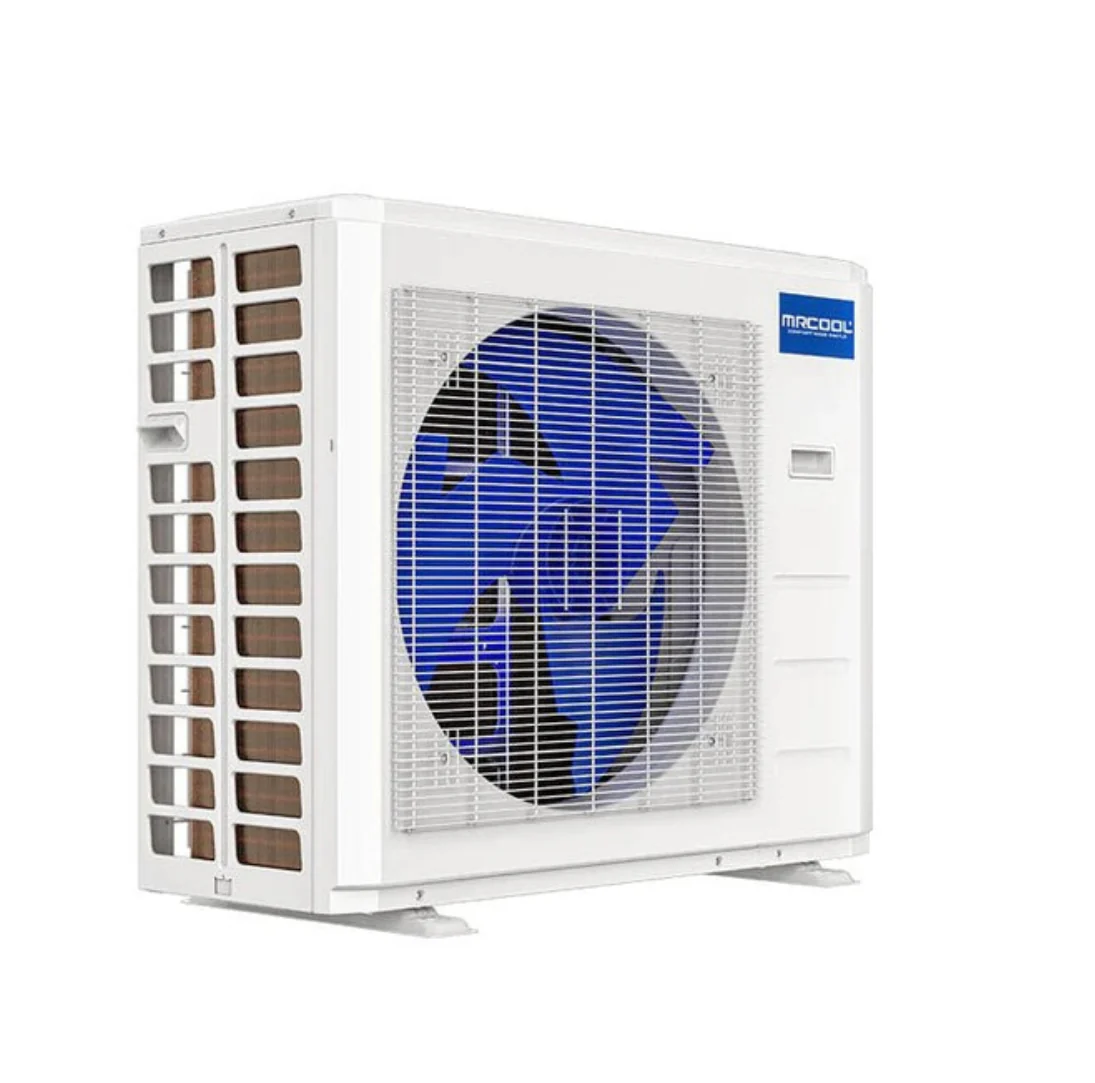

✔ MRCOOL® Hyper Heat 30K BTU 2.5 Ton Condenser (CENTRAL-30-HP-230B00-O)
✔ MRCOOL® VersaPro® 2.5 Ton Central Ducted Air Handler
✔ MRCOOL® Smart Thermostat
Important Note:
No Vac® Quick Connect® Line Sets are not included but are available for separate purchase. These pre-charged line sets simplify installation and eliminate refrigerant handling.
SPECIFICATION & DIMENSIONS
| Category |
Specification |
| Cooling Capacity (Btu/h) |
30,000 |
| SEER2 |
16.8 |
| EER2 |
11.7 |
| Heating Capacity (Btu/h) |
34,000 |
| HSPF2-4 |
10.0 |
| HSPF2-5 |
8.3 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) |
47 / 46 / 43 / 27.5 dB(A) |
| Outdoor Noise Level |
60.5 dB(A) |

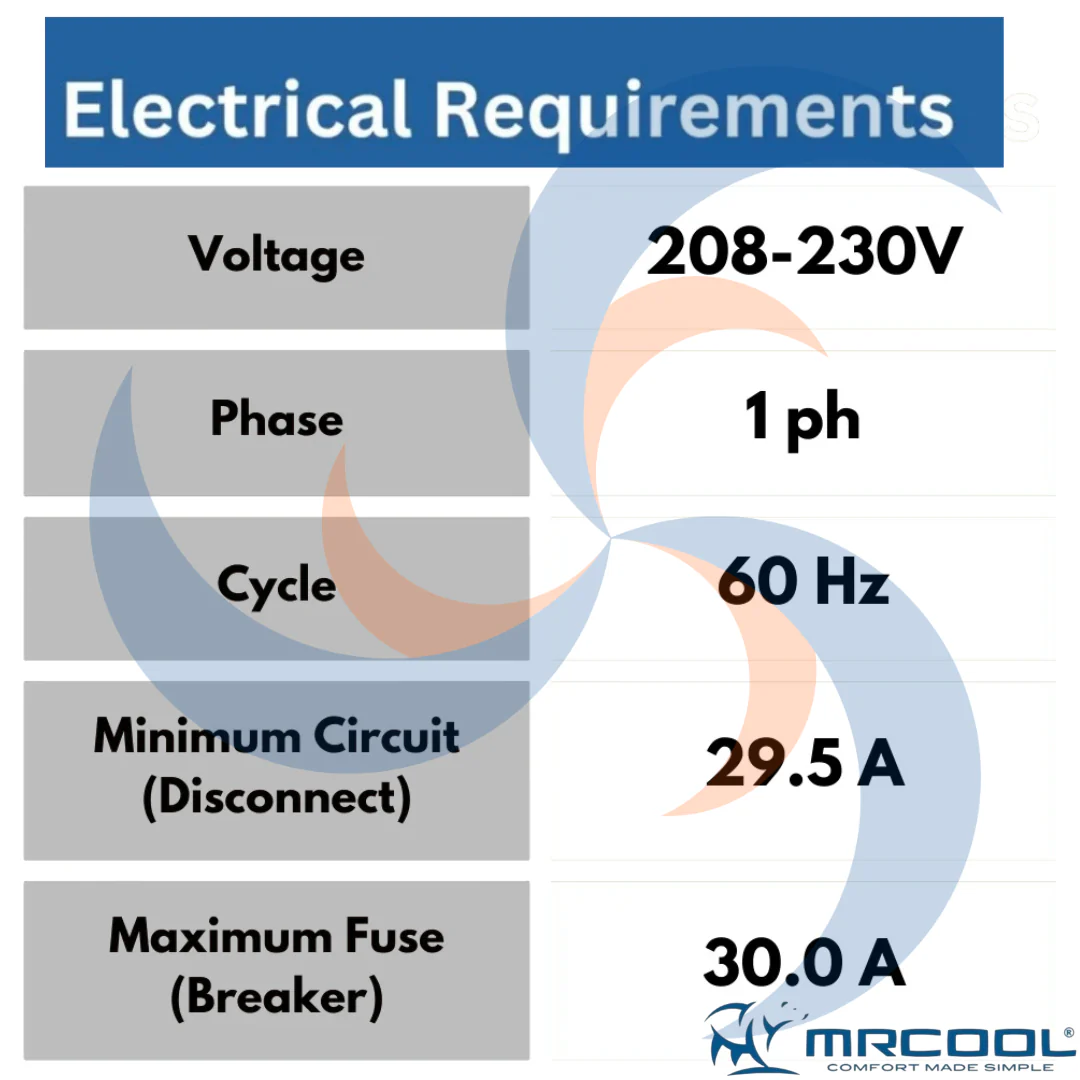

| Power Supply (Indoor) |
208/230V ~ 60Hz, 1ph |
| Power Supply (Outdoor) |
208/230V ~ 60Hz, 1ph |
| Min Circuit Ampacity (Indoor) |
8.0 / 6.0 A |
| Max Fuse (Indoor) |
15 A |
| Min Circuit Ampacity (Outdoor) |
29.5 A |
| Max Fuse (Outdoor) |
30 A |
| Indoor Unit Dimensions (WxDxH) |
21.02 x 21.02 x 49.02 in |
| Indoor Packing Dimensions (WxDxH) |
26.57 x 24.41 x 52.56 in |
| Indoor Net/Gross Weight |
128.97 / 153.44 lbs |
| Outdoor Unit Dimensions (WxDxH) |
37.24 x 16.14 x 31.89 in |
| Outdoor Packing Dimensions (WxDxH) |
42.91 x 19.68 x 34.84 in |
| Outdoor Net/Gross Weight |
164.02 / 174.60 lbs |
| Indoor Airflow (CFM Turbo/Hi/Mi/Lo) |
989 / 895 / 806 / 712 |
| Outdoor Airflow (CFM) |
3001.8 |
| Refrigerant Type |
R-454B |
| Refrigerant Charge |
105.82 oz |
| Piping Size (Liquid/Gas) |
3/8" - 3/4" |
Thermostat Description And Specifications
Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat. This device offers personalized heating and cooling options alongside a straightforward DIY installation process. Effortlessly customize settings to enhance your comfort while reducing energy consumption. Enjoy a variety of modes, including vacation mode, to ensure home safety during your absence without increasing energy bills.
Control your thermostat through multiple avenues, such as the intuitive touch-screen display, voice commands via Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app includes useful features like an air filter cleaning monitor and a timeline of recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings. With unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even if the internet is down, you can still maintain control using the thermostat directly. Backed by a 3-year warranty, the MRCOOL Smart Thermostat combines cutting-edge technology, comfort, and efficiency.
-
Presets for Home, Away, and Sleep - Ensure ideal temperatures that match your specific needs and preferences
-
Smart Schedules - Aligned with your routine for maximum comfort and efficiency.
-
Smart Energy Management - Optimize your energy usage
-
One App for All HVAC Systems - Manage your systems conveniently
-
Global Control - Access and control remotely from anywhere
-
Location-Based Automation - Adjusts settings based on your proximity to home
-
Vacation Mode - Keeps your home safe without inflating energy bills
-
DIY-Friendly Installation - Easy to set up on your own
-
Compatibility - Works with Alexa, Google Assistant, Siri, and MRCOOL® Link
-
Hassle-Free Registration - Quick and easy registration process
-
Track and Optimize Energy Usage - Monitor and fine-tune your energy consumption
- Important Note: Made for Ducted Systems only
| Dimensions |
3.9"W x 1"D x 3.9"H |
| Equipment Type |
Thermostat |
| Supported Systems |
Dual Fuel System
Heat Pumps
Conventional Heating
Conventional Cooling
Conventional Heating & Cooling
Find more info in the Product Brochure |
| Compatible With |
Works with Alexa, Google Assistant, Siri, and MRCOOL® Link |
| Color |
White |
| Voltage |
24 |
| Weight |
0.4 LBS |
| Registered Warranty |
3 Years Base Parts |
Why Choose MRCOOL Direct?
At MRCOOL Direct, we specialize in delivering high-efficiency HVAC solutions directly to consumers. Unlike traditional systems, our No Vac® Quick Connect® technology makes installation easier than ever—saving you time and installation costs.
Order Now & Experience Smarter, More Efficient Heating & Cooling! Your Home Deserves the Best Comfort!
